52313 FAG

Double direction thrust ball bearing

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number 52313 FAG
Inside diameter 55mm
Outside diameter 115mm
Width 65mm
Product description

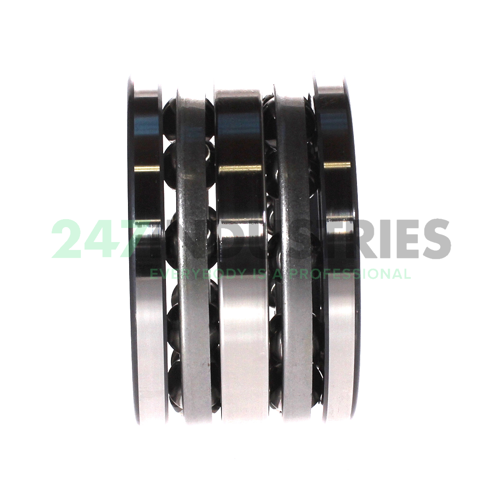

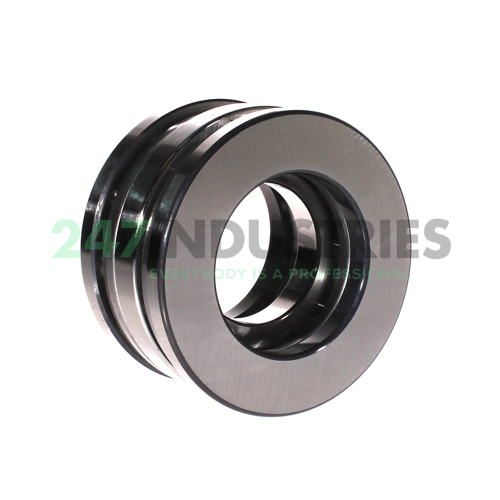

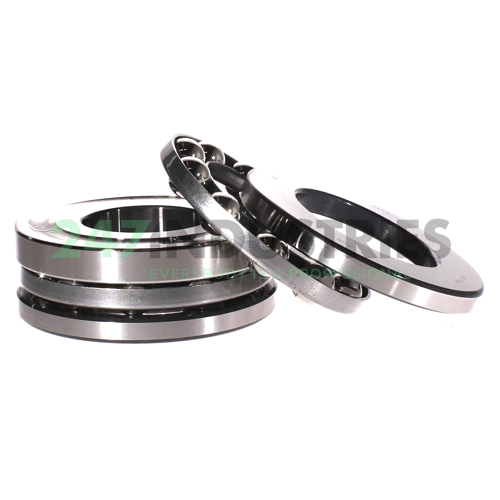

The 52313 FAG is a double-direction thrust ball bearing, also referred to as a thrust bearing or axial deep groove ball bearing. This bearing type consists of a shaft washer, two housing washers, and two ball and cage assemblies. Thrust ball bearings have an open design. High rotational speeds are made possible by the ball elements. As thrust ball bearings are separable, the components can be easily assembled independently of each other.

Double-direction thrust ball bearings are suitable for axial loads in both directions, permitting axial locating of the shaft in either direction. However, these bearings are not intended for radial loads. The shaft washer is mounted on the shaft and rotates along with it, while the housing washers have a slightly larger bore diameter, providing clearance for free shaft movement. Additionally, these housing washers have flat seats, meaning that the 52313 FAG cannot compensate for any misalignments between the shaft and the housing.

Read more Show less
Help with this product

Downloads and links

Similar to: 52313 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 55
  2. Outer (D) MM 115
  3. Width (B) MM 65
  4. Inner (d) Inch 2.1654
  5. Outer (D) Inch 4.5276
  6. Width (B) Inch 2.5591
  7. Outer diameter housing washer (D) mm 115
  8. Height (T 2) mm 65

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number 52313 FAG
  4. Also known as 0167156590000
  5. EAN 4012801322423
  6. Category Thrust Ball Bearing Double Direction

Weight and Dimensions

  1. Weight (kg) 2.579

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 220000
  2. Axial Dynamic Load Rating Ca (N) 105000
  3. Limiting speed (n G) 3050
  4. Reference speed (n ϑr) 5000
  5. ECLASS number 23-05-10-01
  6. ECLASS2 number 23-05-10-01
  7. Medias description Axial deep groove ball bearings 523, main dimensions to DIN 711/ISO 104, double direction, separable
