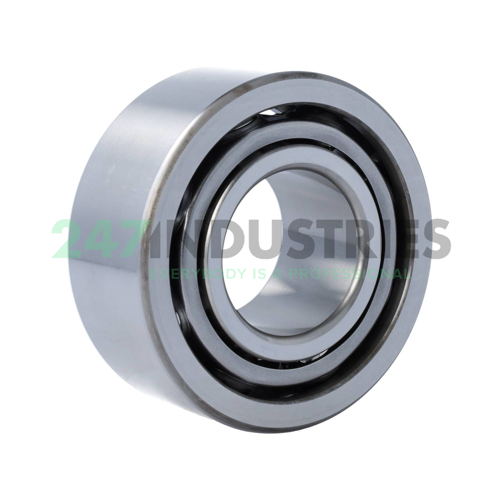

5311SC3 NTN

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 49,2
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.937

Suffix description

1. S Pressed Steel Cage
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 5311SC3 NTN
4. EAN 4547359540161
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.11

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
