54226 FAG

Double direction thrust ball bearing

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number 54226 FAG
Inside diameter 110mm
Outside diameter 190mm
Width 85,8mm
Product description

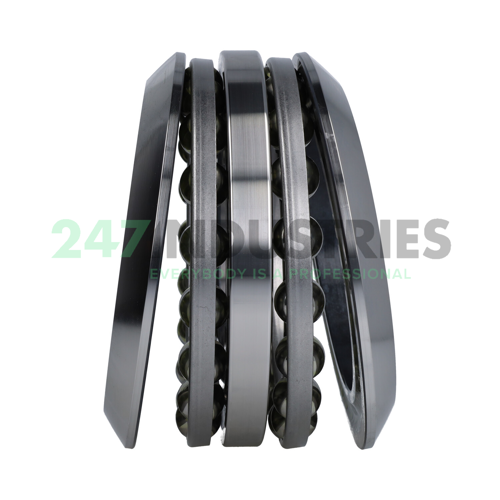

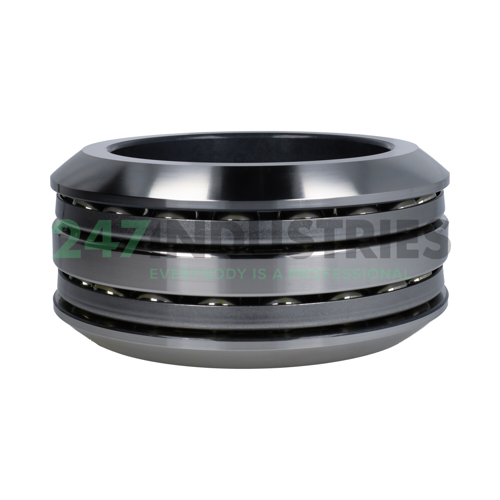

The 54226 FAG is a double-direction thrust ball bearing, also referred to as a thrust bearing or axial deep groove ball bearing. This bearing type consists of a shaft washer, two housing washers, and two ball and cage assemblies. Thrust ball bearings have an open design. High rotational speeds are made possible by the ball elements. As thrust ball bearings are separable, the components can be easily assembled independently of each other.

Double-direction thrust ball bearings are suitable for axial loads in both directions, permitting axial locating of the shaft in either direction. However, these bearings are not intended for radial loads. The shaft washer is mounted on the shaft and rotates along with it, while the housing washers have a slightly larger bore diameter, providing clearance for free shaft movement. Additionally, these housing washers feature spherical seats, which allow the 54226 FAG to be combined with (separately available) spherical seat washers. This combination accommodates minor misalignments between the shaft and housing.

Read more Show less
Help with this product

Downloads and links

Similar to: 54226 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 110
  2. Outer (D) MM 190
  3. Width (B) MM 85,8
  4. Inner (d) Inch 4.3307
  5. Outer (D) Inch 7.4803
  6. Width (B) Inch 3.378
  7. Outer diameter housing washer (D) mm 190
  8. Height (T 2) mm 85,8

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number 54226 FAG
  4. Also known as 0190749480000
  5. EAN 4012801199865
  6. Category Thrust Ball Bearing Double Direction

Weight and Dimensions

  1. Weight (kg) 7.78

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 540000
  2. Axial Dynamic Load Rating Ca (N) 184000
  3. Limiting speed (n G) 2210
  4. Reference speed (n ϑr) 2950
  5. ECLASS number 23-05-10-01
  6. ECLASS2 number 23-05-10-01
  7. Medias description Axial deep groove ball bearings 542, main dimensions to DIN 711/ISO 104, double direction, with spherical housing locating washers, separable
