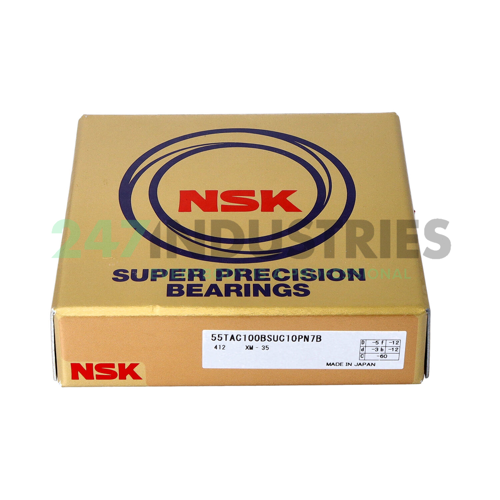

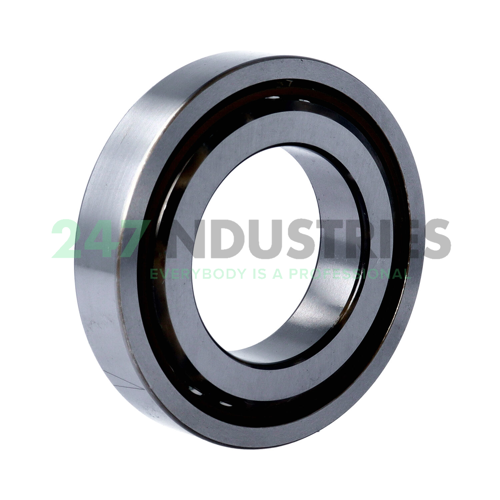

55TAC100BSUC10PN7B NSK

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 20
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.7874

Suffix description

1. B High Capacity & Higher Speed (Replaces “A” Type)
2. SU Single Universal
3. C10 Metric Series
4. PN7B Bore And O.D. Tolerance Is Tighter; Used With SU Combination

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 55TAC100BSUC10PN7B NSK
4. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.636

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision P4 Precision (Higher than P5)
