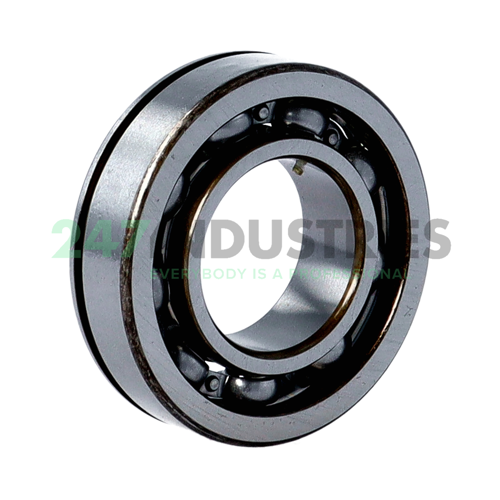

60/22NC3 NSK

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 44
3. Width (B) MM 12
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 1.7323
6. Width (B) Inch 0.4724

Suffix description

1. N Snap Ring Groove In The Outer Ring
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 60/22NC3 NSK
4. EAN 00192661075791
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.074

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
