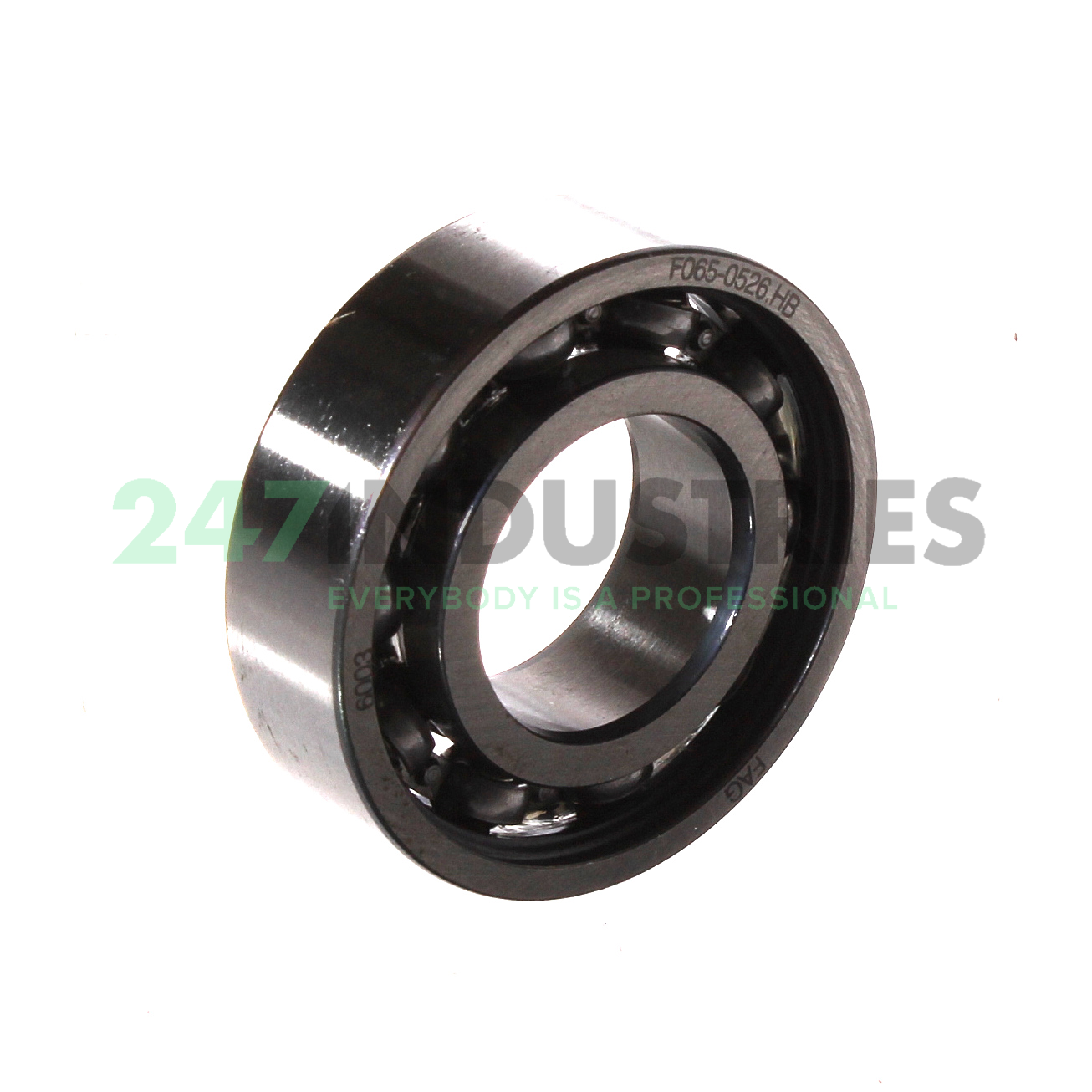

6003 FAG

Open 17x35x10mm

Stock
425 pcs available
Brand FAG
Article number 6003 FAG
Inside diameter 17mm
Outside diameter 35mm
Width 10mm
Product description
The 6003 FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6003 FAG is suitable for high speeds and can operate with low noise.

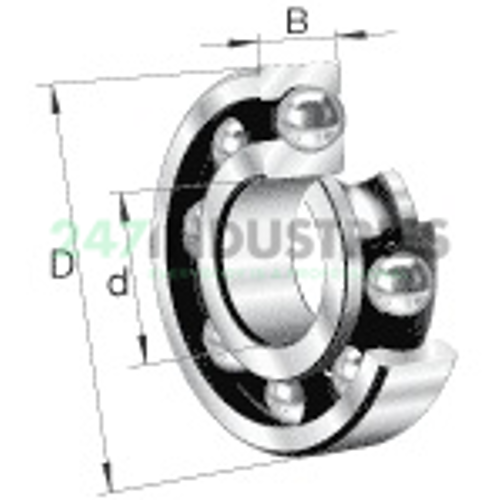

The dimensions of the 6003 FAG are: Bore (or inner diameter) 17mm, Outer diameter 35mm and Width (or thickness) 10mm.

6000 serie
The 6003 FAG is part of the popular 6000 serie which contain extra light ball bearings and are perfect for limited space applications.The 6000 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
Read more Show less
Help with this product

Downloads and links

Similar to: 6003 FAG

Loading similair products

Product specifications

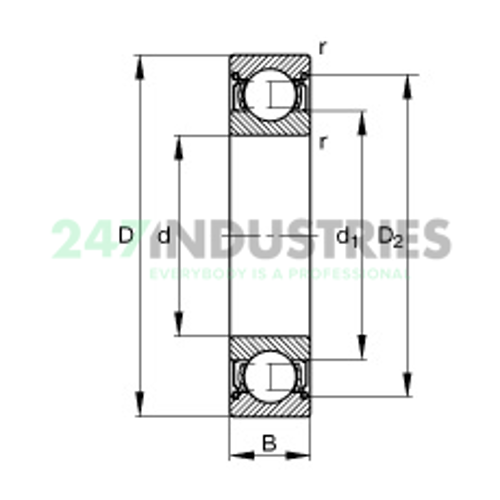

All dimensions

  1. Inner (d) MM 17
  2. Outer (D) MM 35
  3. Width (B) MM 10
  4. Inner (d) Inch 0.6693
  5. Outer (D) Inch 1.378
  6. Width (B) Inch 0.3937
  7. Width (b) mm 10

Technical details

  1. Availability 425 pcs
  2. Brand FAG
  3. Item number 6003 FAG
  4. Also known as 0167170150000
  5. EAN 4012801163521
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.039

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 3250
  2. Radial Dynamic Load Rating Cr (N) 6400
  3. Basic static load rating, radial (C 0r) "3250.0000"
  4. Limiting speed (n G) 31000
  5. Reference speed (n ϑr) 20300
  6. ECLASS number 23-05-08-01
  7. ECLASS2 number 23-05-08-01
  8. Medias description Deep groove ball bearing 60, single row, cf. DIN 625-1
