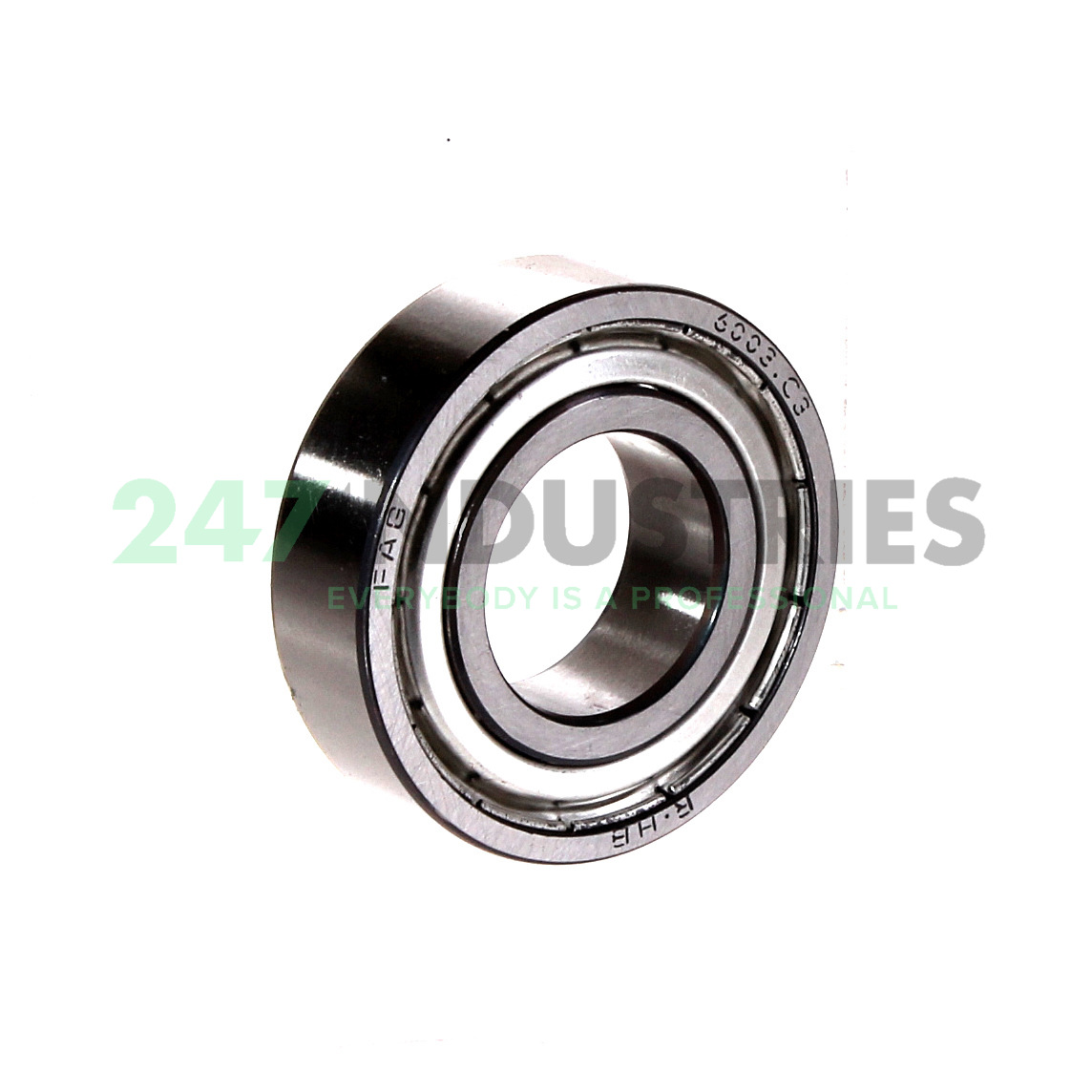

6003ZR.C3 FAG

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 35
3. Width (B) MM 10
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.3937

Suffix description

1. ZR One Metal Shield, Radial Type
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 552 pcs
2. Brand FAG
3. Item number 6003ZR.C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.039

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
