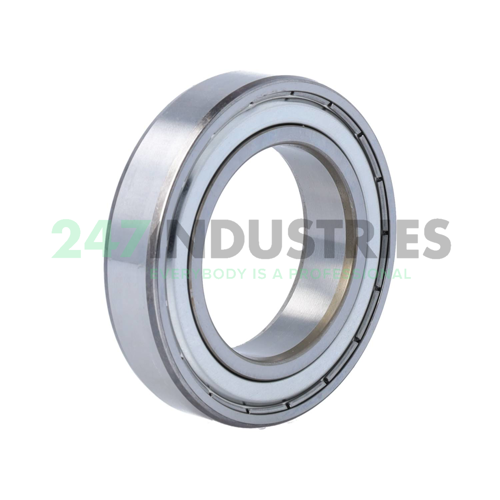

6009ZZC3 SNR

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 75
3. Width (B) MM 16
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 0.6299

Suffix description

1. ZZ Two Shields
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 6009ZZC3 SNR
4. EAN 3413520114091
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.232

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
