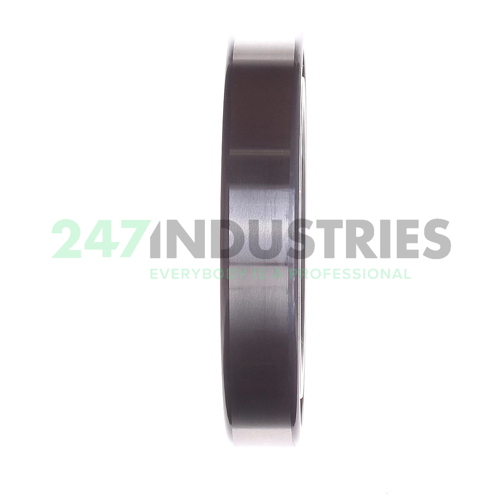

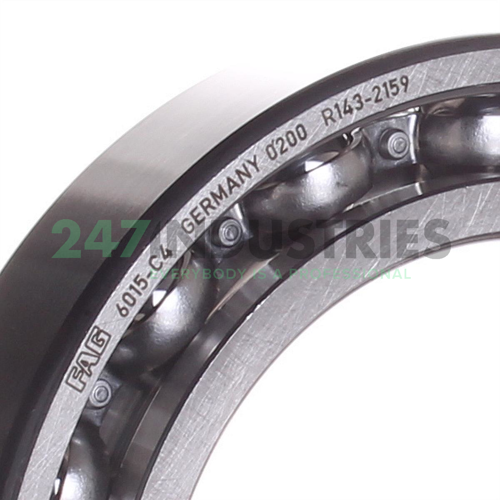

6015-C4 FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 115
3. Width (B) MM 20
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.5276
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 76 pcs
2. Brand FAG
3. Item number 6015-C4 FAG
4. Also known as 0167180700040

5. EAN 4012801274234
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.647

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 33500
2. Radial Dynamic Load Rating Cr (N) 42000
3. Basic static load rating, radial (C 0r) "33500.0000"
4. Limiting speed (n G) 8100
5. Reference speed (n ϑr) 6300
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 60, single row, cf. DIN 625-1
