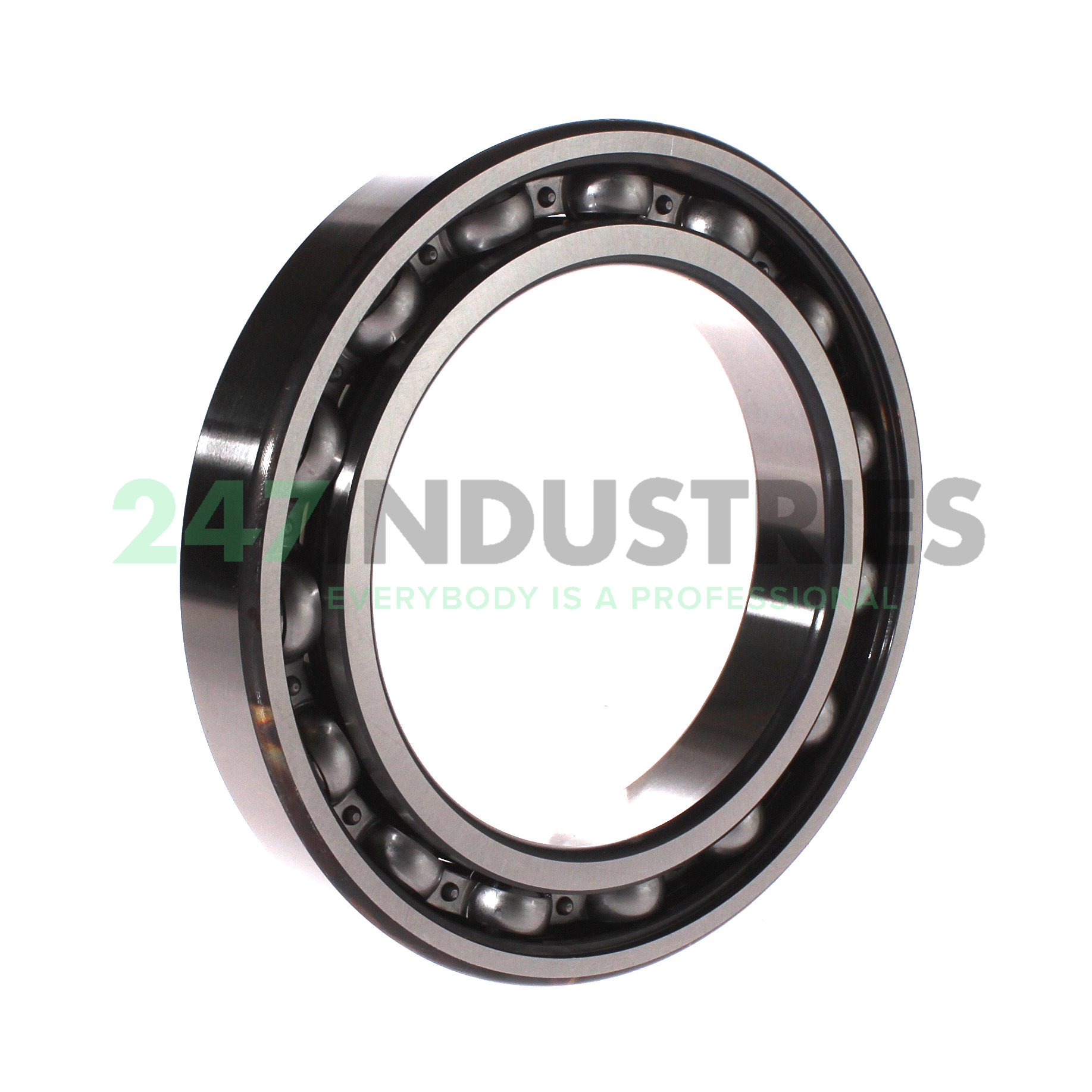

6024-Z FAG

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 28
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.1024
7. Width (b) mm 28

Suffix description

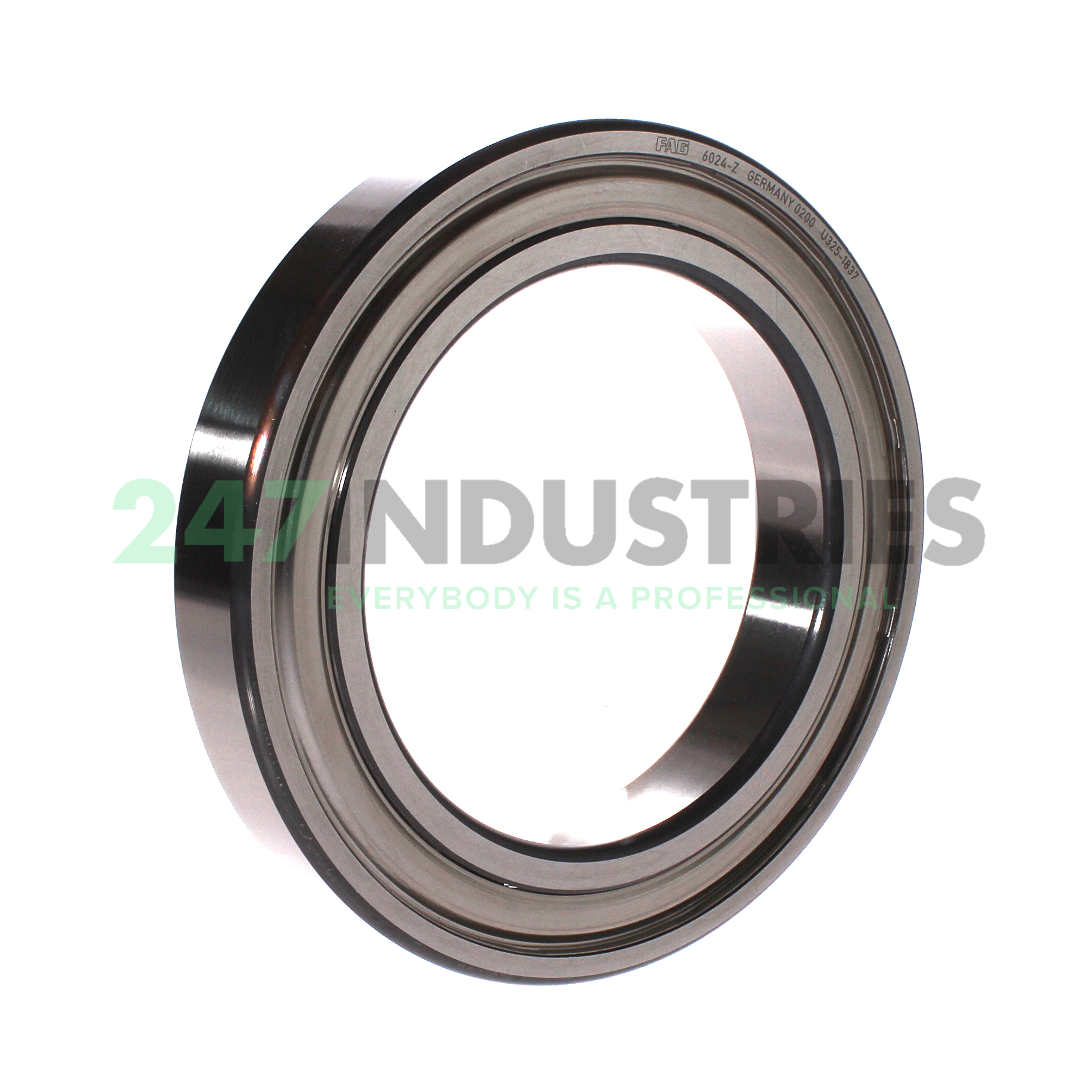

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing

Technical details

1. Availability 11 pcs
2. Brand FAG
3. Item number 6024-Z FAG
4. Also known as 0167185420000

5. EAN 4012801201766
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.11

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 77000
2. Radial Dynamic Load Rating Cr (N) 88000
3. Basic static load rating, radial (C 0r) "77000.0000"
4. Limiting speed (n G) 5000
5. Reference speed (n ϑr) 4450
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 60..-Z, single row, cf. DIN 625-1
