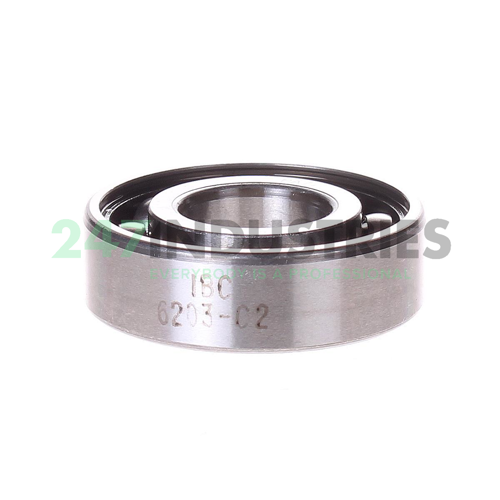

6203PA7 C2H IBC Bearings

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12

Suffix description

1. PA7 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7
2. C2H Radial Internal Clearance Less Than Normal, Reduced Clearance Range Corresponding To The Upper Half Of The Actual Clearance Range

Technical details

1. Availability 0 pcs
2. Brand IBC Bearings
3. Item number 6203PA7 C2H IBC Bearings
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Int. Play Upper Half C2 Range
6. Precision P4 Precision (Higher than P5)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
