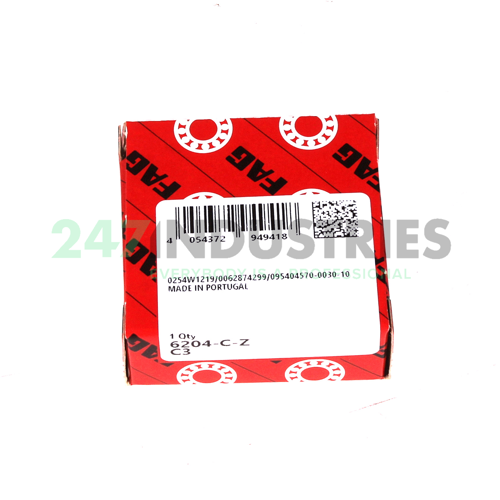

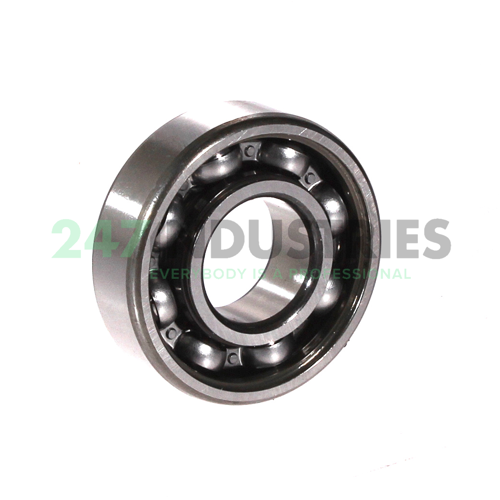

6204-C-Z-C3 FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512
7. Width (b) mm 14

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 20 pcs
2. Brand FAG
3. Item number 6204-C-Z-C3 FAG
4. Also known as 0621995360030
   0954045700030
   6204-Z-C3

5. EAN 4012802383584
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.103

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13900
3. Basic static load rating, radial (C 0r) "6600.0000"
4. Limiting speed (n G) 24300
5. Reference speed (n ϑr) 18100
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-C-Z, single row, cf. DIN 625-1
