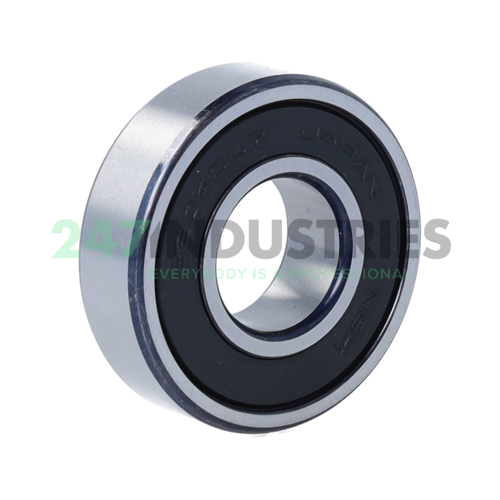

6204DDU 7 C3 E X28 NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. DDU7 DU(RS1-SKF) & V-Type Viton Seal
2. C3E Internal Clearance Larger Than Normal. Electric Motor Grade
3. X28 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6204DDU 7 C3 E X28 NSK
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.106

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
