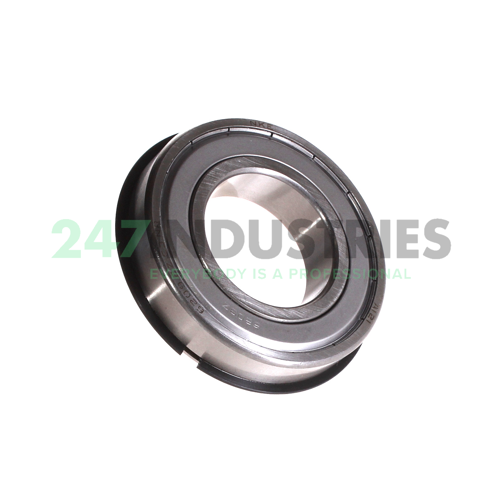

6209 2Z C3 NR NKE

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 19

Suffix description

1. 2Z Two Metallic Shields
2. C3 Internal Clearance Larger Than Normal
3. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 0 pcs
2. Brand NKE
3. Item number 6209 2Z C3 NR NKE
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.413

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
