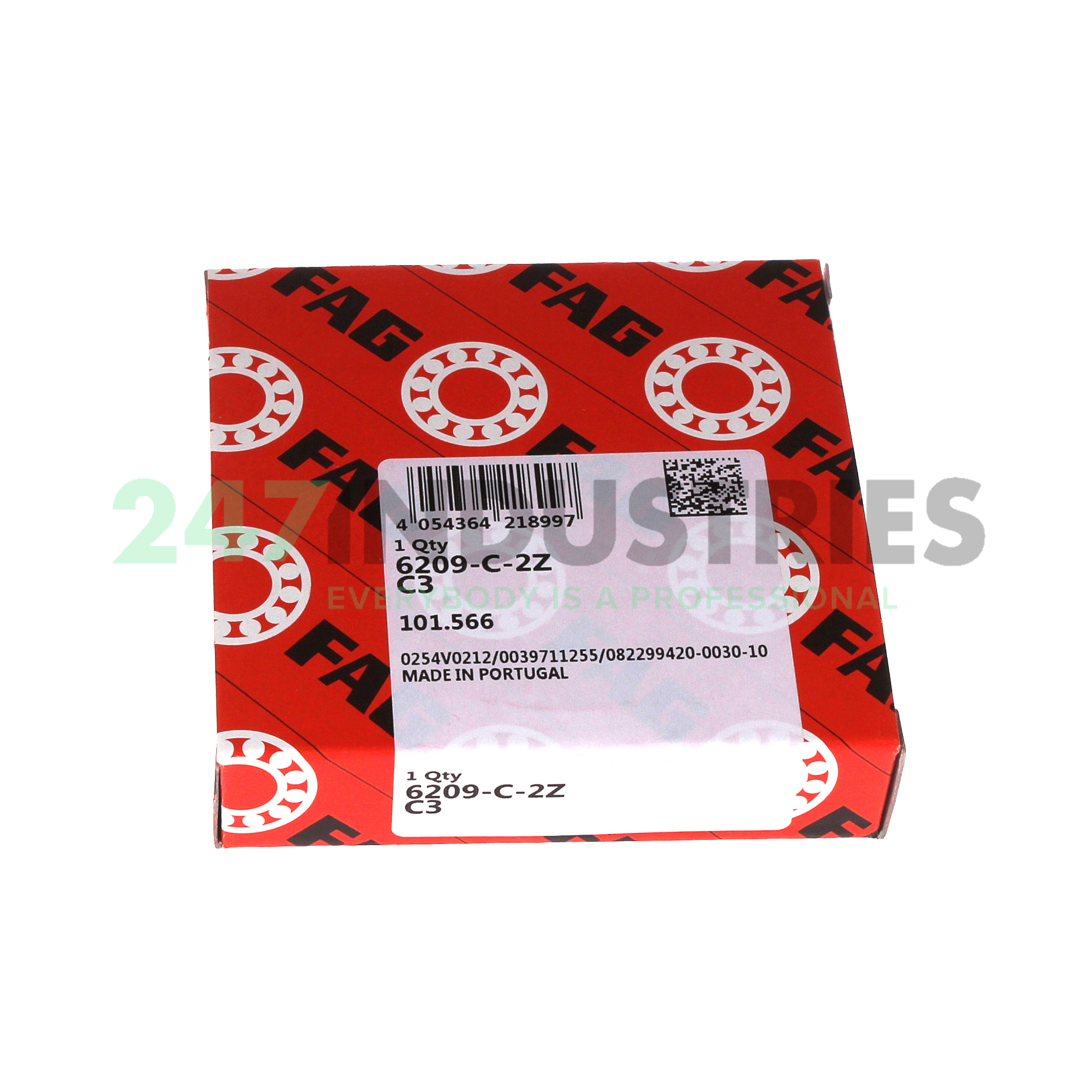

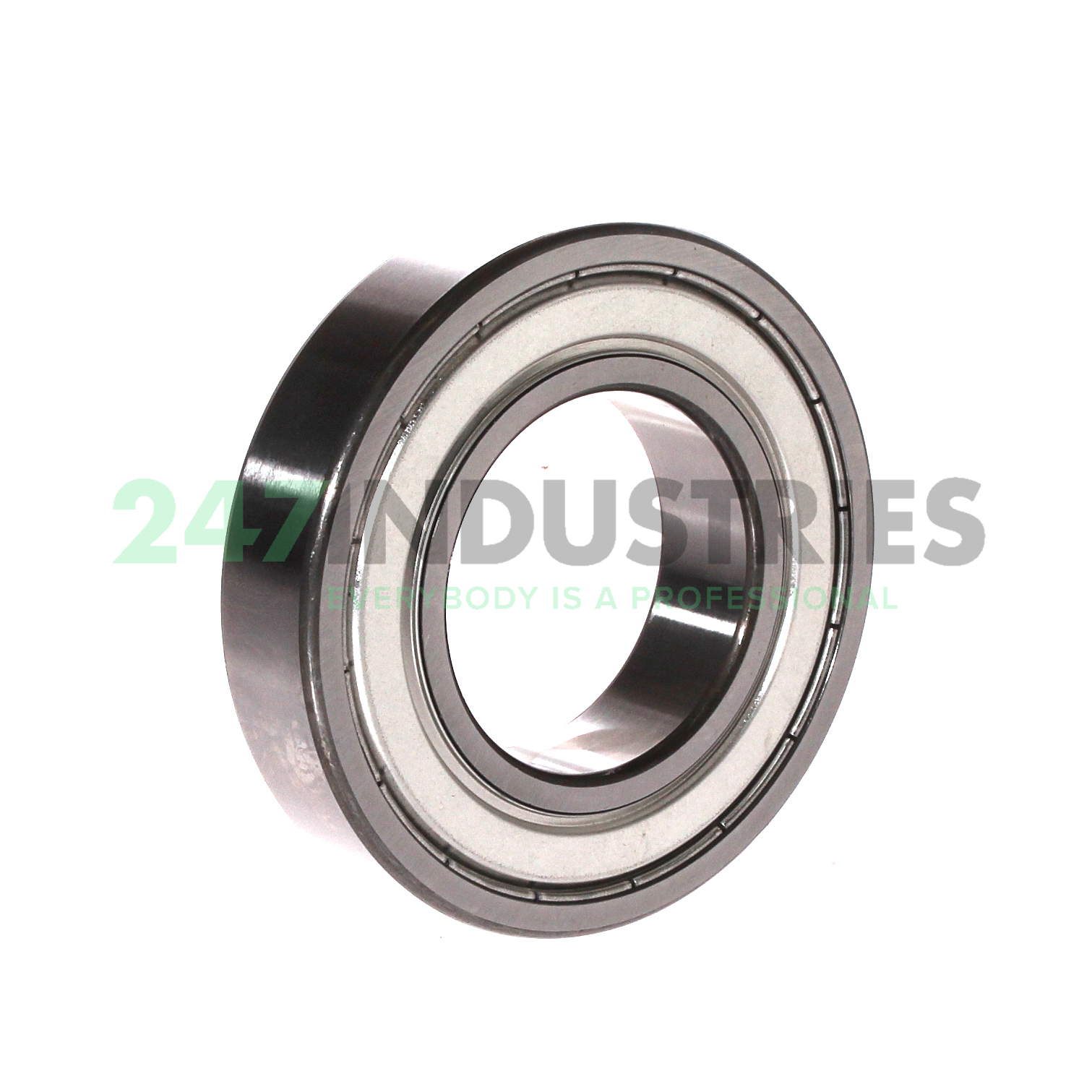

6209-C-2Z-C3 FAG

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 19
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 250 pcs on Thu 12 Dec
2. Brand FAG
3. Item number 6209-C-2Z-C3 FAG
4. Also known as 0822994200030
   6209-2Z/C3
   6209-2Z-C3

5. EAN 4054364218997
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.413

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 20300
2. Radial Dynamic Load Rating Cr (N) 33500
3. Basic static load rating, radial (C 0r) "20300.0000"
4. Limiting speed (n G) 10800
5. Reference speed (n ϑr) 9900
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-C-2Z, single row, cf. DIN 625-1
