6212-2Z FAG

Steel seal (2 sides) 60x110x22mm

Stock
477 pcs in stock and ready for shipment
Brand FAG
Article number 6212-2Z FAG
Inside diameter 60mm
Outside diameter 110mm
Width 22mm
Product description

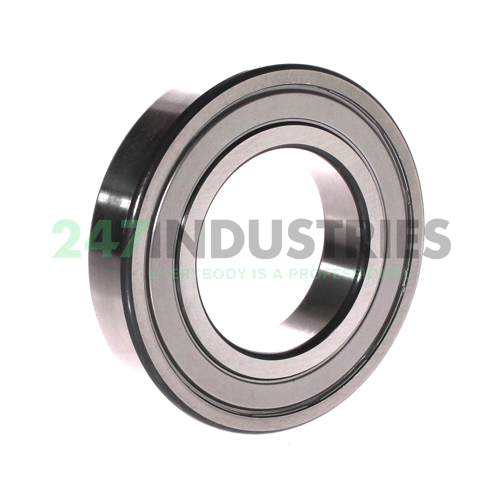

The 6212-2Z FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6212-2Z FAG is suitable for high speeds and can operate with low noise.

The dimensions of the 6212-2Z FAG are: Bore (or inner diameter) 60mm, Outer diameter 110mm and Width (or thickness) 22mm.

6200 serie
The 6212-2Z FAG is part of the popular 6200 serie which contain extra light ball bearings and are perfect for limited space applications.The 6200 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
Read more Show less
Help with this product

Downloads and links

Similar to: 6212-2Z FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60
  2. Outer (D) MM 110
  3. Width (B) MM 22
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 4.3307
  6. Width (B) Inch 0.8661
  7. Width (b) mm 22

Suffix description

  1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technical details

  1. Availability 477 pcs
  2. Brand FAG
  3. Item number 6212-2Z FAG
  4. Also known as 0167209540000
    6212-C-2Z
  5. EAN 4012801076524
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.803

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 36500
  2. Radial Dynamic Load Rating Cr (N) 57000
  3. Basic static load rating, radial (C 0r) "36500.0000"
  4. Limiting speed (n G) 7900
  5. Reference speed (n ϑr) 6800
  6. ECLASS number 23-05-08-01
  7. ECLASS2 number 23-05-08-01
  8. Medias description Deep groove ball bearing 62..-2Z, single row, cf. DIN 625-1
