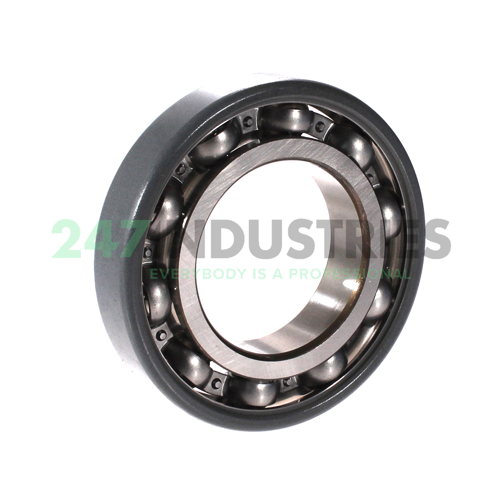

6212C3 SQ77 AKN

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 22
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661

Suffix description

1. C3 Internal Clearance Larger Than Normal
2. SQ77 Isolated Up To 500 Volt

Technical details

1. Availability 0 pcs
2. Brand AKN
3. Item number 6212C3 SQ77 AKN
4. Also known as 6212.C3.SJ5
   6212C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.781

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision VL - Breakdown Voltage To 500v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
