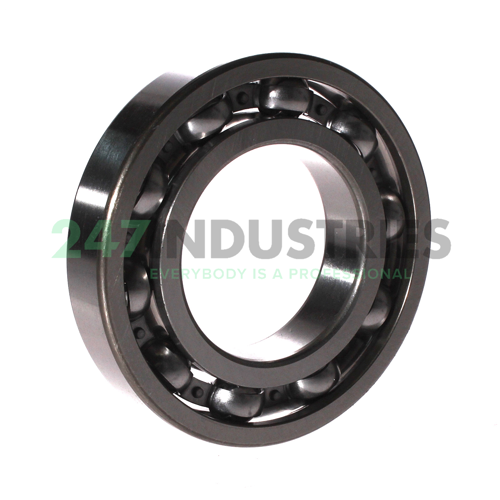

6213-H-SN-C3 FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 120
3. Width (B) MM 23
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. H Basic Quality
2. SN The Rings Of The Bearing Are Dimensional Stabilised To 120°C
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 27 pcs
2. Brand FAG
3. Item number 6213-H-SN-C3 FAG
4. Also known as 3015314120030
   6213-C-C3

5. EAN 4064328303027
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.997

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 40150
2. Radial Dynamic Load Rating Cr (N) 57190
3. Basic static load rating, radial (C 0r) "40150.0000"
4. Limiting speed (n G) 7800
5. Reference speed (n ϑr) 6200
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 62..-H, main dimensions to DIN 625-1
