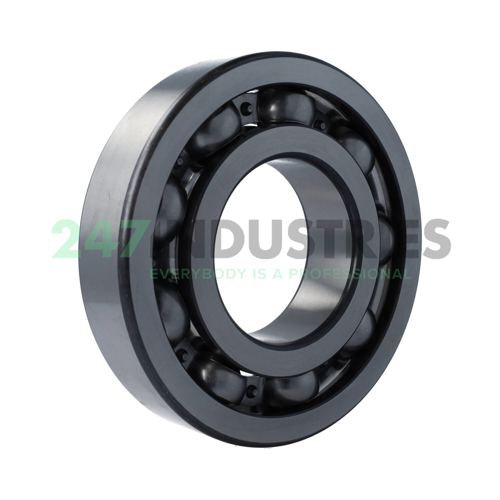

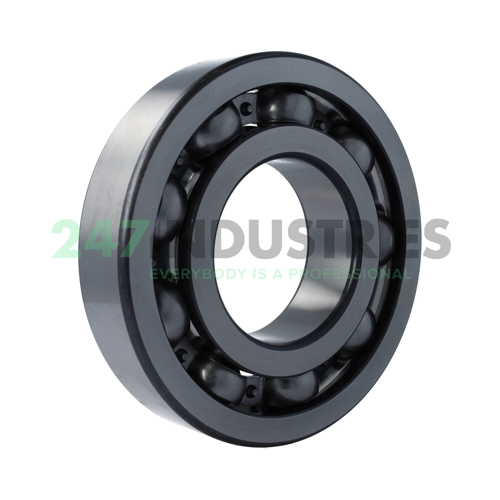

6221 FAG

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 190
3. Width (B) MM 36
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 7.4803
6. Width (B) Inch 1.4173
7. Width (b) mm 36

Technical details

1. Availability 43 pcs
2. Brand FAG
3. Item number 6221 FAG
4. Also known as 0167218370000

5. EAN 4012801203807
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.7256

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 105000
2. Radial Dynamic Load Rating Cr (N) 141000
3. Basic static load rating, radial (C 0r) "105000.0000"
4. Limiting speed (n G) 4750
5. Reference speed (n ϑr) 4650
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
