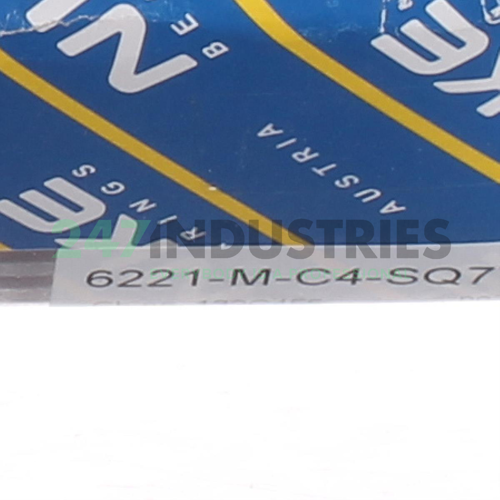

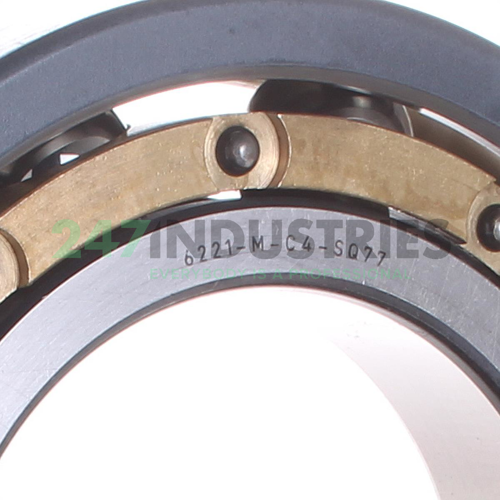

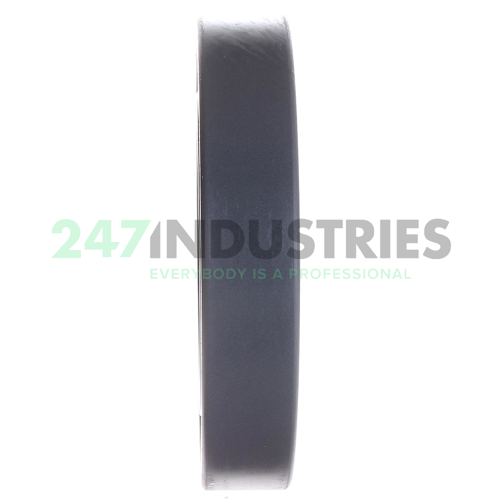

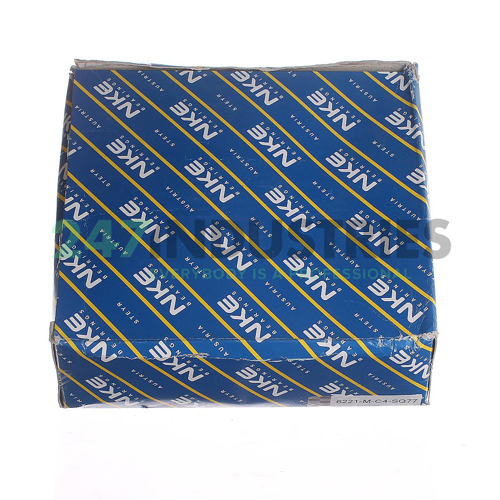

6221-M-C4-SQ77 NKE

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 190
3. Width (B) MM 36
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 7.4803
6. Width (B) Inch 1.4173

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. C4 Bearing Internal Clearance Greater Than C3
3. SQ77 Outer Ring Isolated Up To 1000 Volt

Technical details

1. Availability 0 pcs
2. Brand NKE
3. Item number 6221-M-C4-SQ77 NKE
4. Also known as 6221M/C4VL024

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Breakdown Voltage 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
