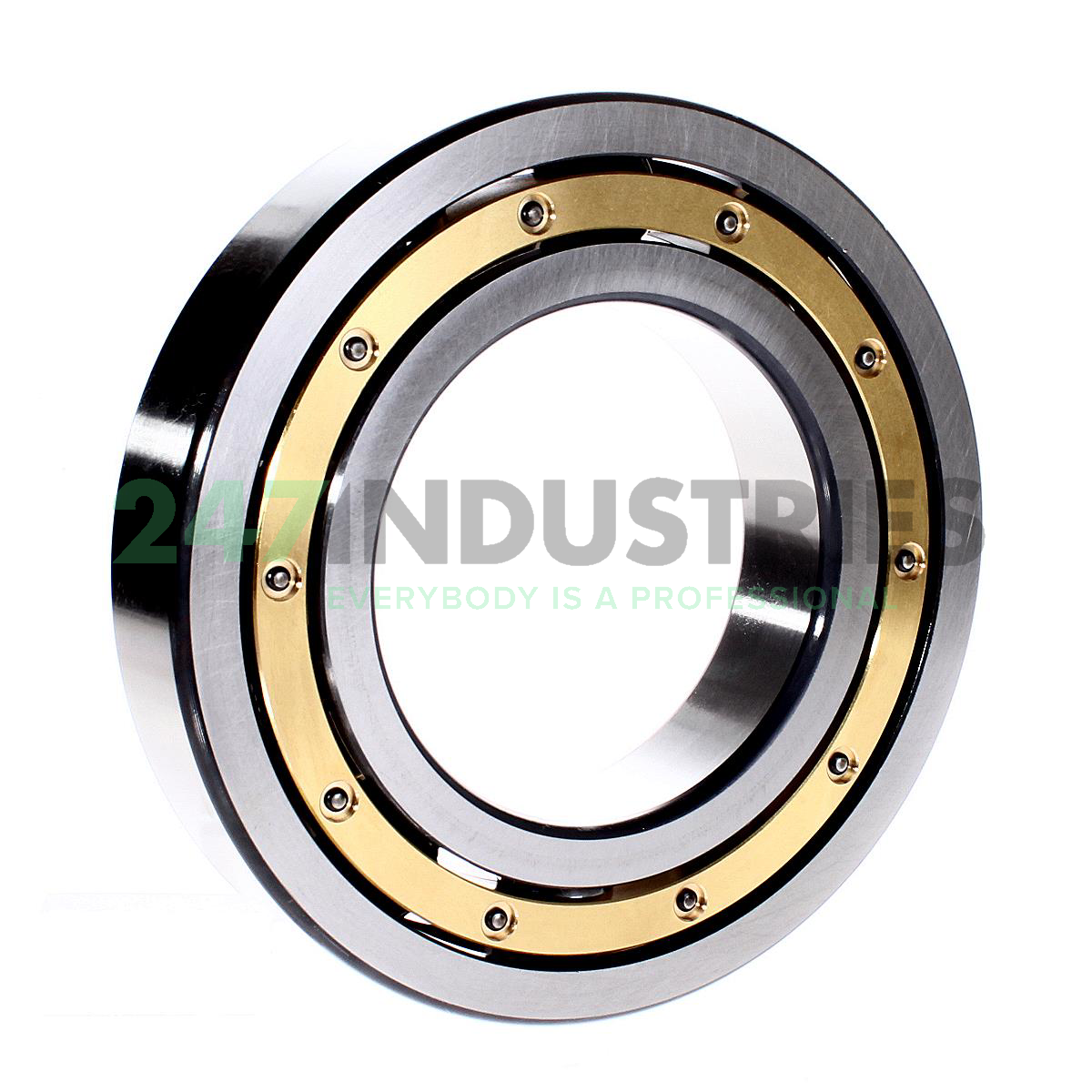

6222-M FAG

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 200
3. Width (B) MM 38
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.4961
7. Width (b) mm 38

Suffix description

1. M Solid Brass Cage, Ball-Guided

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 6222-M FAG
4. Also known as 0191061220000

5. EAN 4026677171207
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 5.32

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 117000
2. Radial Dynamic Load Rating Cr (N) 153000
3. Basic static load rating, radial (C 0r) "117000.0000"
4. Limiting speed (n G) 5800
5. Reference speed (n ϑr) 4500
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-M, single row, cf. DIN 625-1
