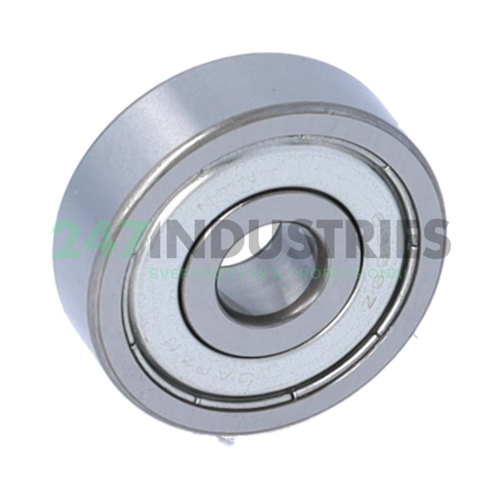

6300ZZCM/5K NTN

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 35
3. Width (B) MM 11
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.4331

Suffix description

1. ZZ Two Metallic Shields
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance
3. 5K Grease: Kyodo Yushi / Multemp SRL (Range -40 ~ 150°C)

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6300ZZCM/5K NTN
4. Also known as 6300-2Z
   6300-2Z/QE6
   6300ZZ
   6300ZZCM

5. EAN 4547359005240
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.054

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
