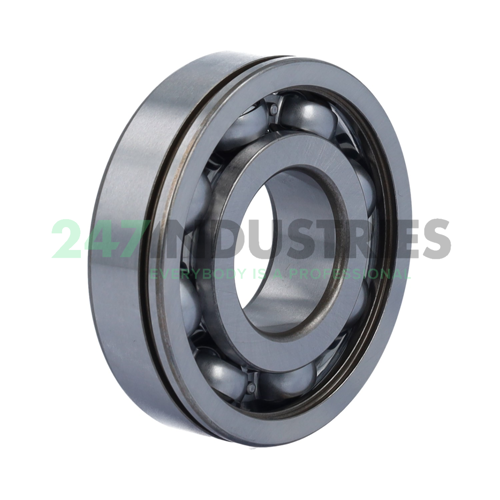

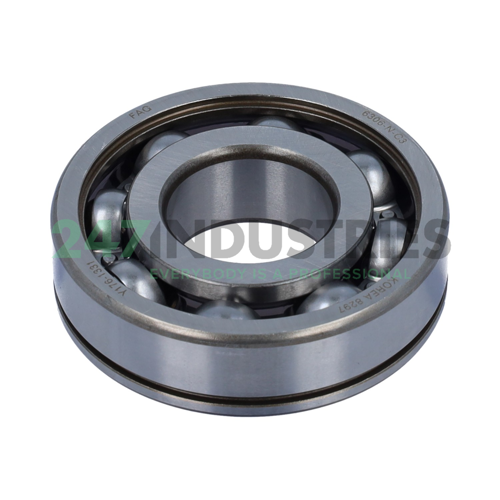

6306-N-C3 FAG

Deep groove ball bearing

Stock
36 pcs in stock and ready for shipment
Brand FAG
Article number 6306-N-C3 FAG
Inside diameter 30mm
Outside diameter 72mm
Width 19mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: 6306-N-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 72
  3. Width (B) MM 19
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.8346
  6. Width (B) Inch 0.748
  7. Width (b) mm 19

Suffix description

  1. N Snap Ring Groove In The Outer Ring
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 36 pcs
  2. Brand FAG
  3. Item number 6306-N-C3 FAG
  4. Also known as 0167231710030
  5. EAN 4012801073622
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.346

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type S - Steel or Standard Cage
  4. External Modification N - Snap Ring Groove in Outer Ring
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 16200
  2. Limiting speed (n G) 13700
  3. Reference speed (n ϑr) 10500
  4. ECLASS number 23-05-08-01
  5. ECLASS2 number 23-05-08-01
