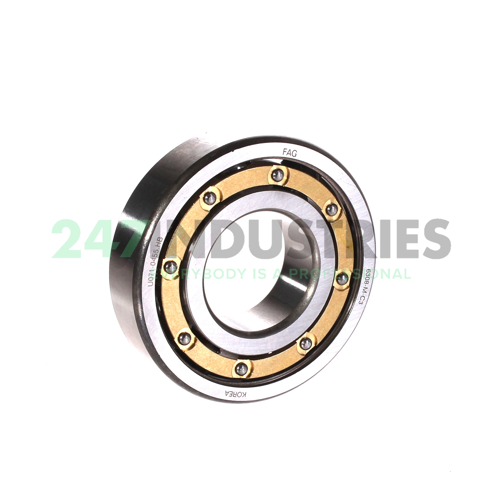

6308-M-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 22 pcs
2. Brand FAG
3. Item number 6308-M-C3 FAG
4. Also known as 0191093180030

5. EAN 4012801074803
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.765

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 25000
2. Limiting speed (n G) 14000
3. Reference speed (n ϑr) 9000
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
