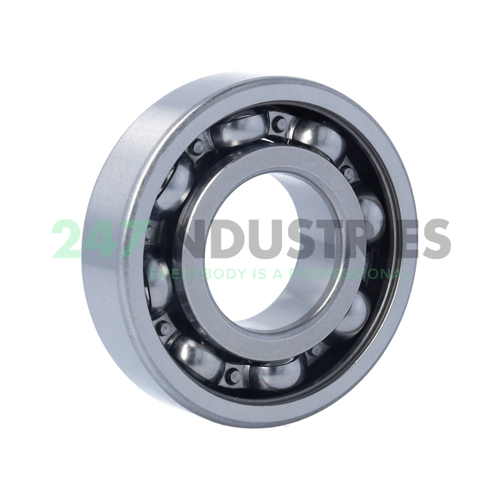

6308ZR-C4 SWC

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. ZR Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 9 pcs
2. Brand SWC
3. Item number 6308ZR-C4 SWC
4. Also known as 6308Z C4
   6308-Z/C4
   6308-Z-C4

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.638

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
