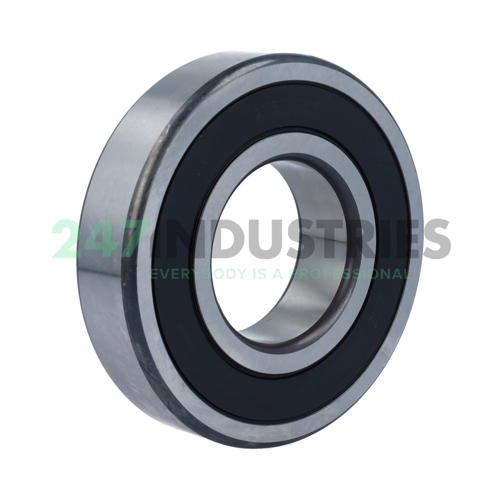

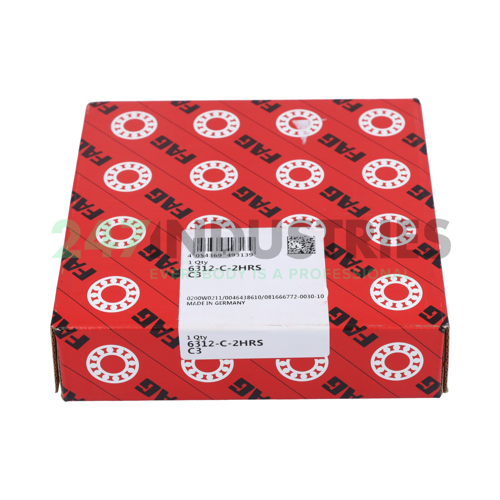

6312-C-2HRS-C3 FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 31
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.2205
7. Width (b) mm 31

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 114 pcs
2. Brand FAG
3. Item number 6312-C-2HRS-C3 FAG
4. Also known as 0816667720030
   6312-2RS1/C3
   6312-2RS-C3
   6312-2RSH/C3
   6312-2RSR-C3

5. EAN 4054369493139
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.73

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 52000
2. Radial Dynamic Load Rating Cr (N) 89000
3. Basic static load rating, radial (C 0r) "52000.0000"
4. Limiting speed (n G) 4800
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-C-2HRS, single row, cf. DIN 625-1
