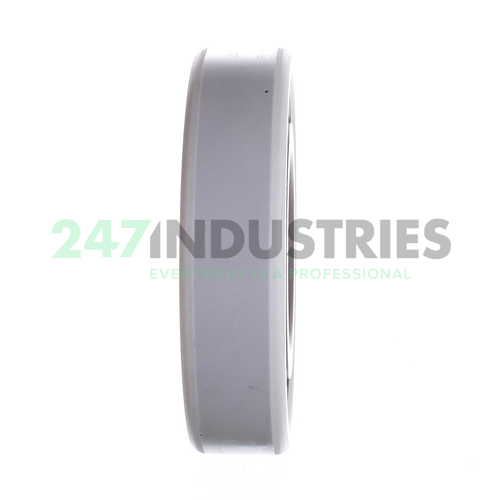

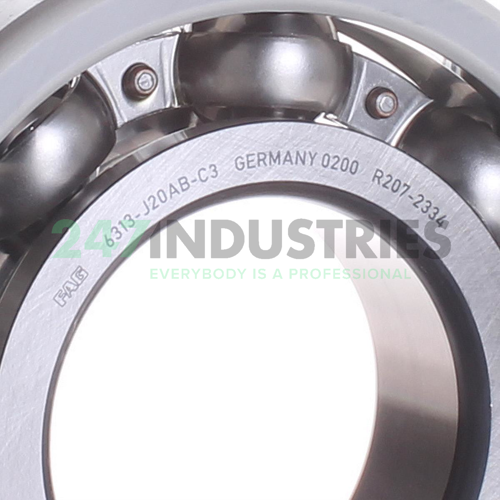

6313-J20AB-C3 FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 33
4. Width (b) mm 33

Suffix description

1. J20AB Puncture Voltage: 1.000vDC - Operating Environment: Dry, Damp - Layer Thickness: 100μm - Possible Dimensions: 70mm–1400mm Outside Diameter
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 45 pcs
2. Brand FAG
3. Item number 6313-J20AB-C3 FAG
4. Also known as 0731312880030

5. EAN 4012802775464
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.08

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment J20AB

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 60000
2. Radial Dynamic Load Rating Cr (N) 100000
3. Basic static load rating, radial (C 0r) "60000.0000"
4. Limiting speed (n G) 7300
5. Reference speed (n ϑr) 6400
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 63..-J20AB, single row, cf. DIN 625-1
