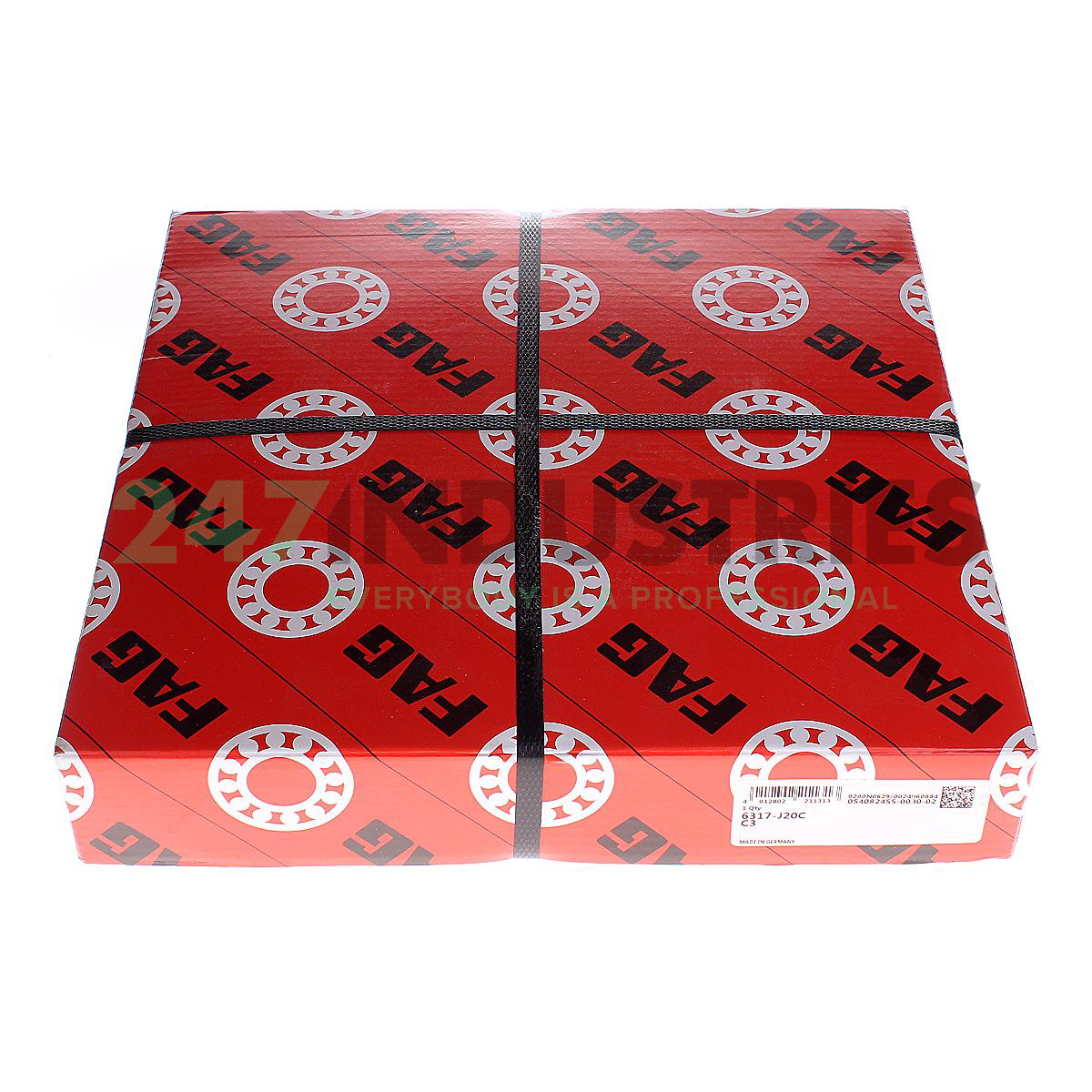

6317-J20C-C3 FAG

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 180
3. Width (B) MM 41
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.6142
7. Width (b) mm 41

Suffix description

1. J20C Current Insulation, Inner Ring Ceramic Coated
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 6317-J20C-C3 FAG
4. Also known as 0540824550030

5. EAN 4012802211313
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 4.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Inner Ring Resists 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 97000
2. Radial Dynamic Load Rating Cr (N) 141000
3. Basic static load rating, radial (C 0r) "97000.0000"
4. Limiting speed (n G) 5000
5. Reference speed (n ϑr) 5300
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 63..-J20C, single row, cf. DIN 625-1
