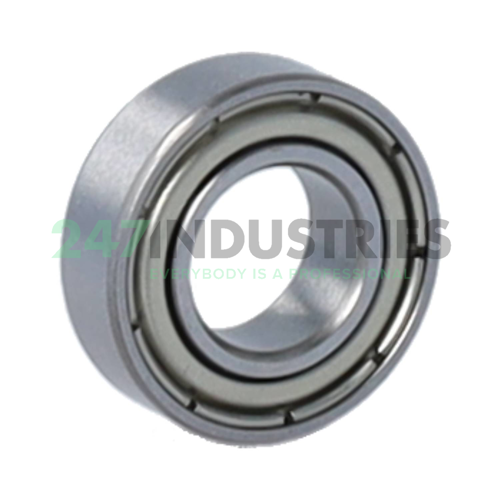

688-2Z FAG

All dimensions

1. Inner (d) MM 8
2. Outer (D) MM 16
3. Width (B) MM 5
4. Inner (d) Inch 0.315
5. Outer (D) Inch 0.6299
6. Width (B) Inch 0.1969

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technical details

1. Availability 4,267 pcs
2. Brand FAG
3. Item number 688-2Z FAG
4. Also known as 628/8-2Z
   ADR.X8-2Z

5. EAN 4064328331211
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0036

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
