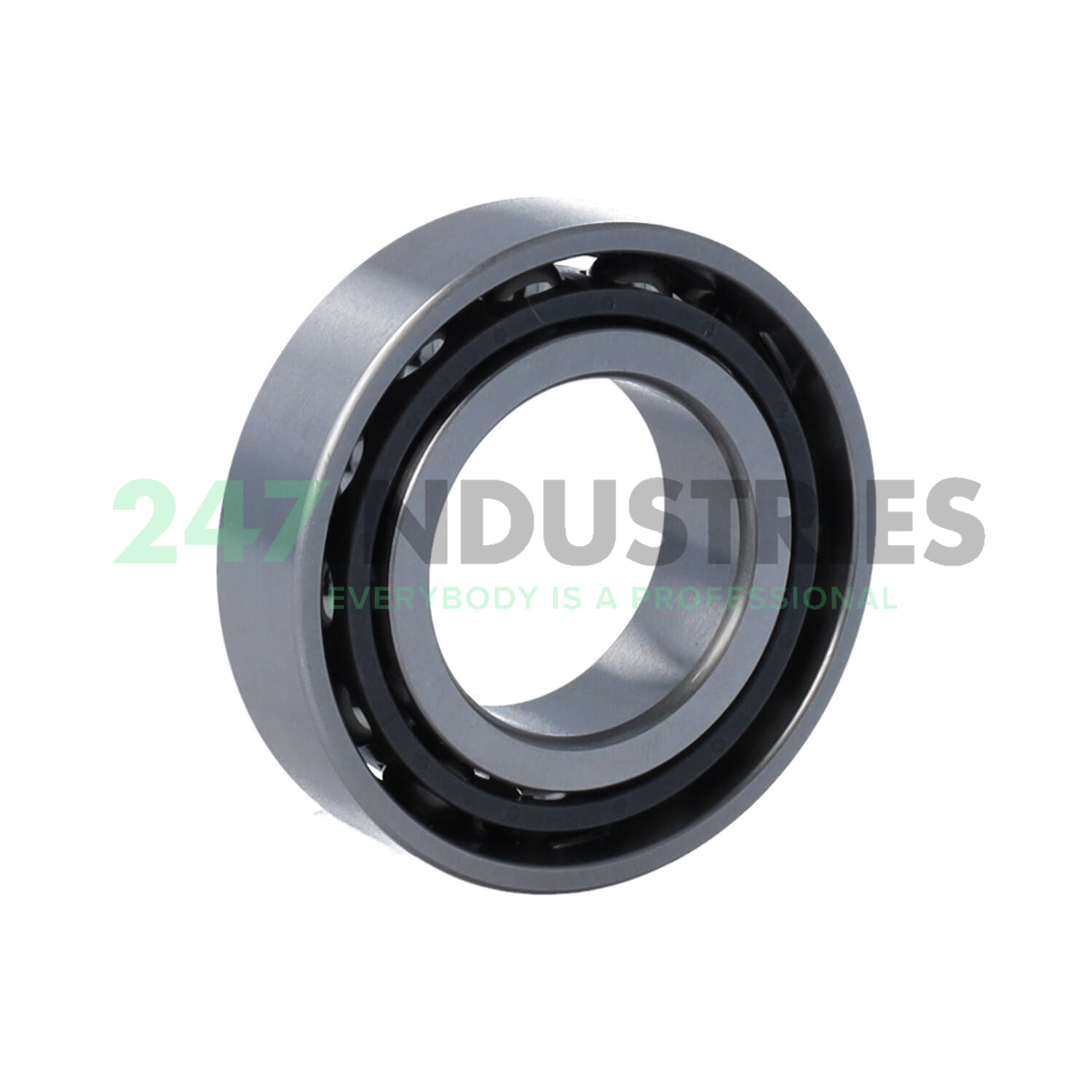

7005C TYN P5 NSK

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 47
3. Width (B) MM 12
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.4724

Suffix description

1. C 15° Contact Angle
2. TYN This Special Design Allows The Bearing To Have Lower Friction And Lower Noise. The Temperature Rise Of The Bearing With A TYN Cage Is Lower Than That With A Phenolic Cage At A Rotational Speed Lower Than 1.4 Million DmN* ("Dm
3. N Pitch Circle Diameter Of Rolling Elements (mm)" x "Speed" (Min-1"))
4. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7005C TYN P5 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.08

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 15 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
