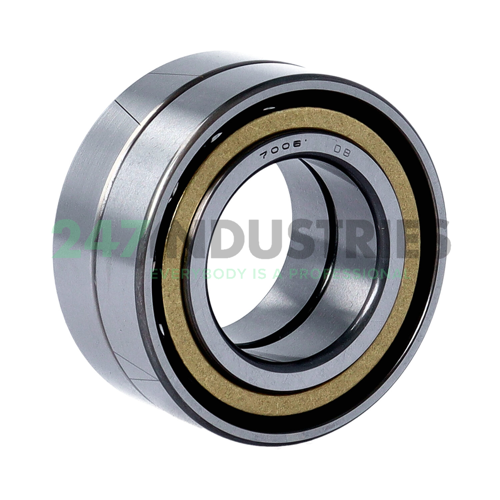

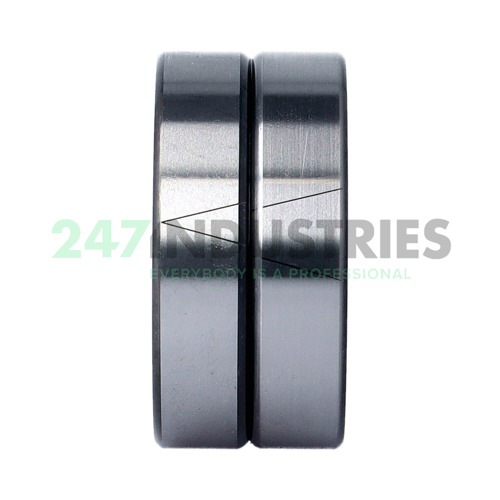

7006ADB NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 26
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 1.0236

Suffix description

1. A 30° Contact Angle
2. DB Set Of 2 Bearings O-Arrangement

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7006ADB NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
