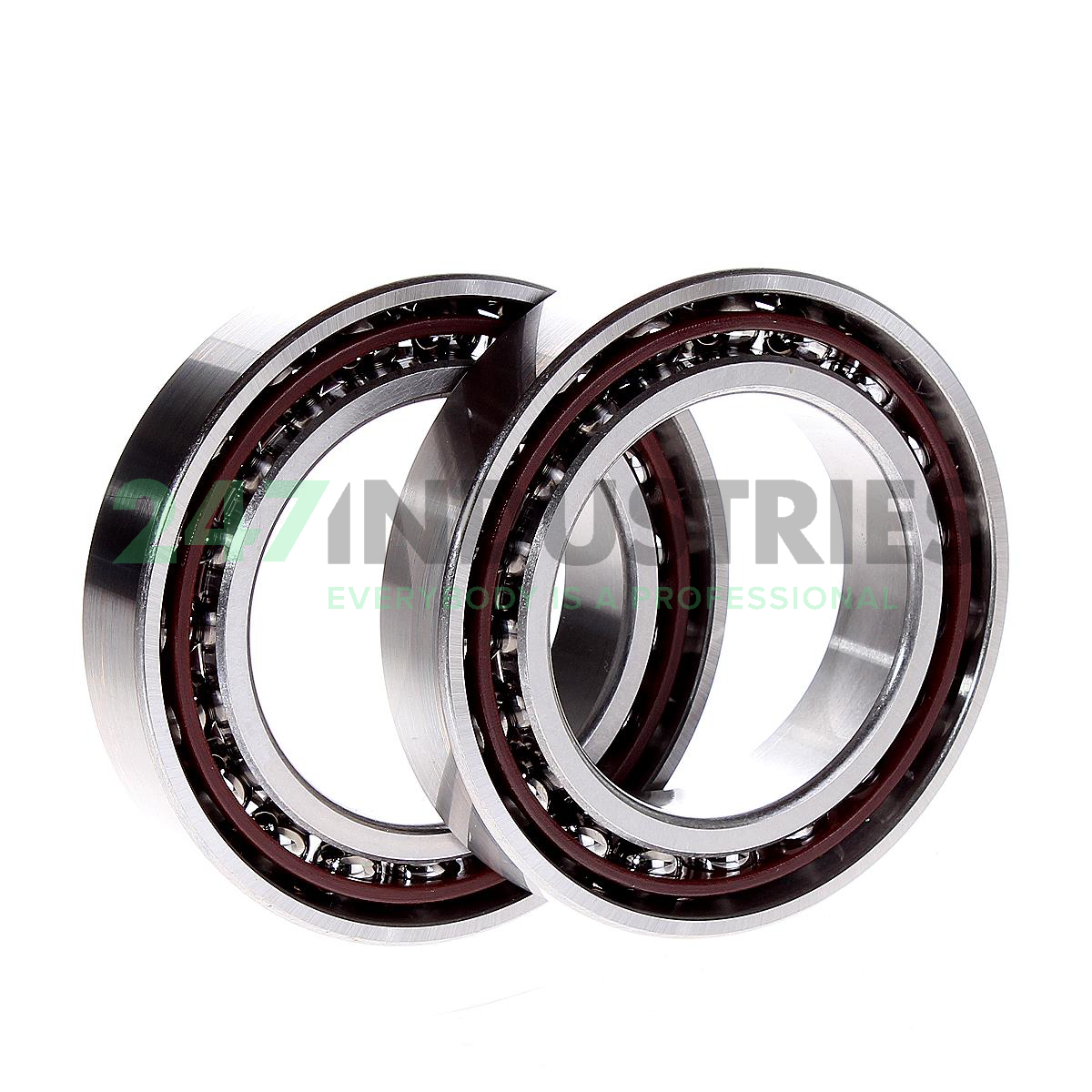

7010HV DU J84 SNR

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 80
3. Width (B) MM 32
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.2598

Suffix description

1. H 25° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. DU Angular Contact Bearing Assembly With Two Bearings That Can Be Matched DB, DF Or DT
4. J84 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 8 Medium Preload

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 7010HV DU J84 SNR
4. Also known as 3MM9110WICRDUL
   7010A5 TR DUM P4
   7010ACD/P4ADGB
   B7010-E-T-P4S-DUM
   S6010E TA ABEC7 DUM

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.5

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DM - 2 Univ Bearings Medium Pre
7. Lubrication Standard Lubrication
