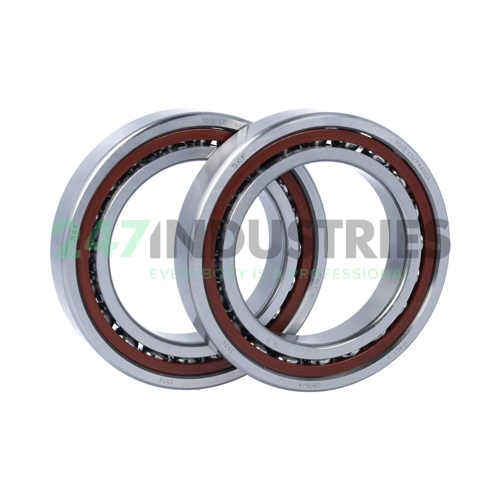

7013X2 TA DUL EP7 Neutral

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 100
3. Width (B) MM 36
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.4173

Suffix description

1. X2 15° Contact Angle
2. TA One Piece Outer Ring Centred Machined Laminated Phenolic
3. DUL Set Of 2 Universal Bearings, Light Preload
4. EP7 Extra Precision Tolerance Class 7. Super Precision Metric Bearings To ISO Grade 4, Abec-7, And BS292 EP7 Tolerances (Also Inch Bearings When Supplied To Abec-7 Tolerances)

Technical details

1. Availability 0 pcs
2. Brand Neutral
3. Item number 7013X2 TA DUL EP7 Neutral
4. Also known as 7013CD/P4ADGA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.84

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
