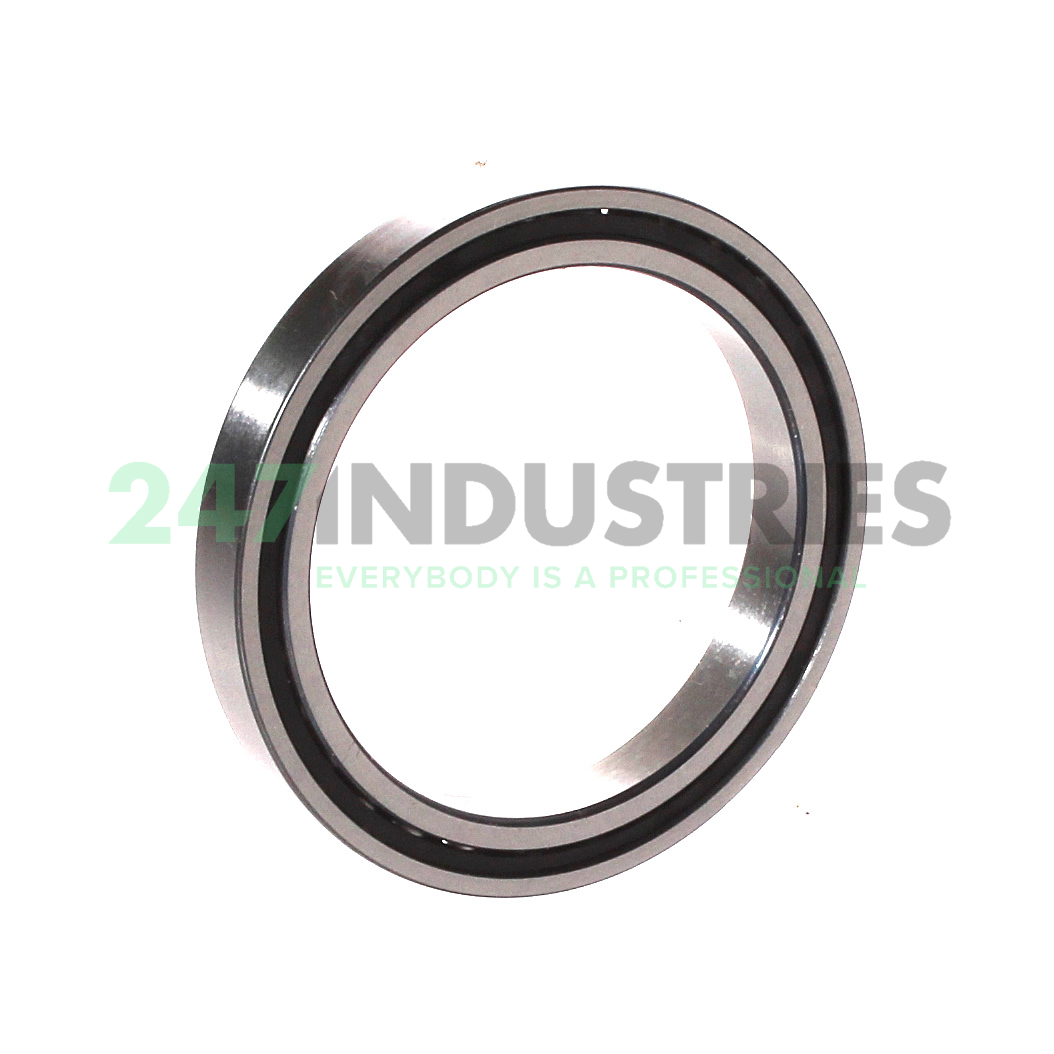

71808-TN INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 52
3. Width (B) MM 7
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.2756
7. Width (b) mm 7

Suffix description

1. TN Polyamide Cage

Technical details

1. Availability 37 pcs
2. Brand INA
3. Item number 71808-TN INA
4. Also known as 0096210240000

5. EAN 4054362004318
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.03

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5800
2. Radial Dynamic Load Rating Cr (N) 6300
3. Basic static load rating, radial (C 0r) "5800.0000"
4. Limiting speed (n G) 16200
5. Reference speed (n ϑr) 7200
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Angular contact ball bearing 718..-TVH, single row

Downloads and links

1. Link to manufacturer Link to manufacturer
