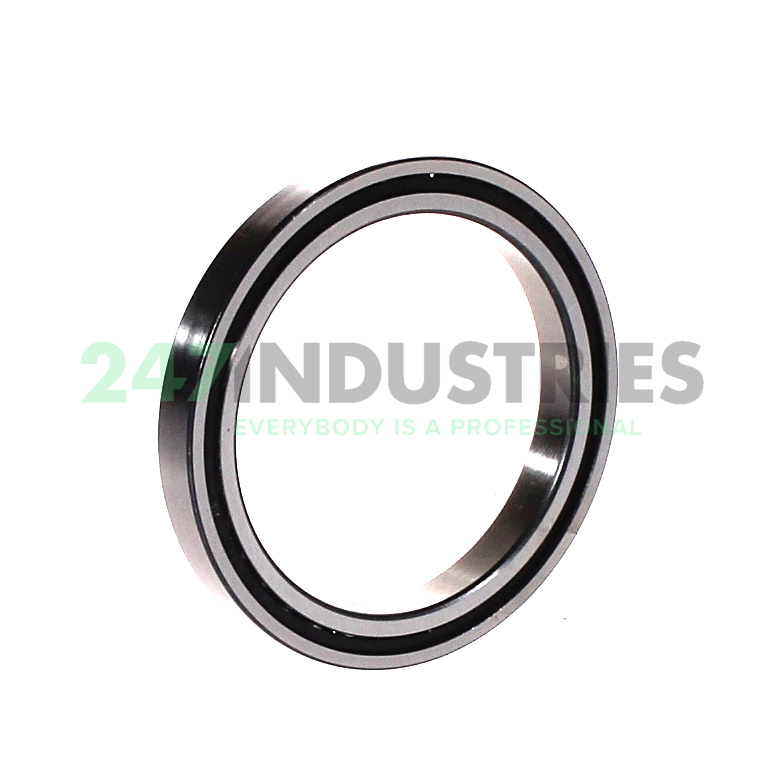

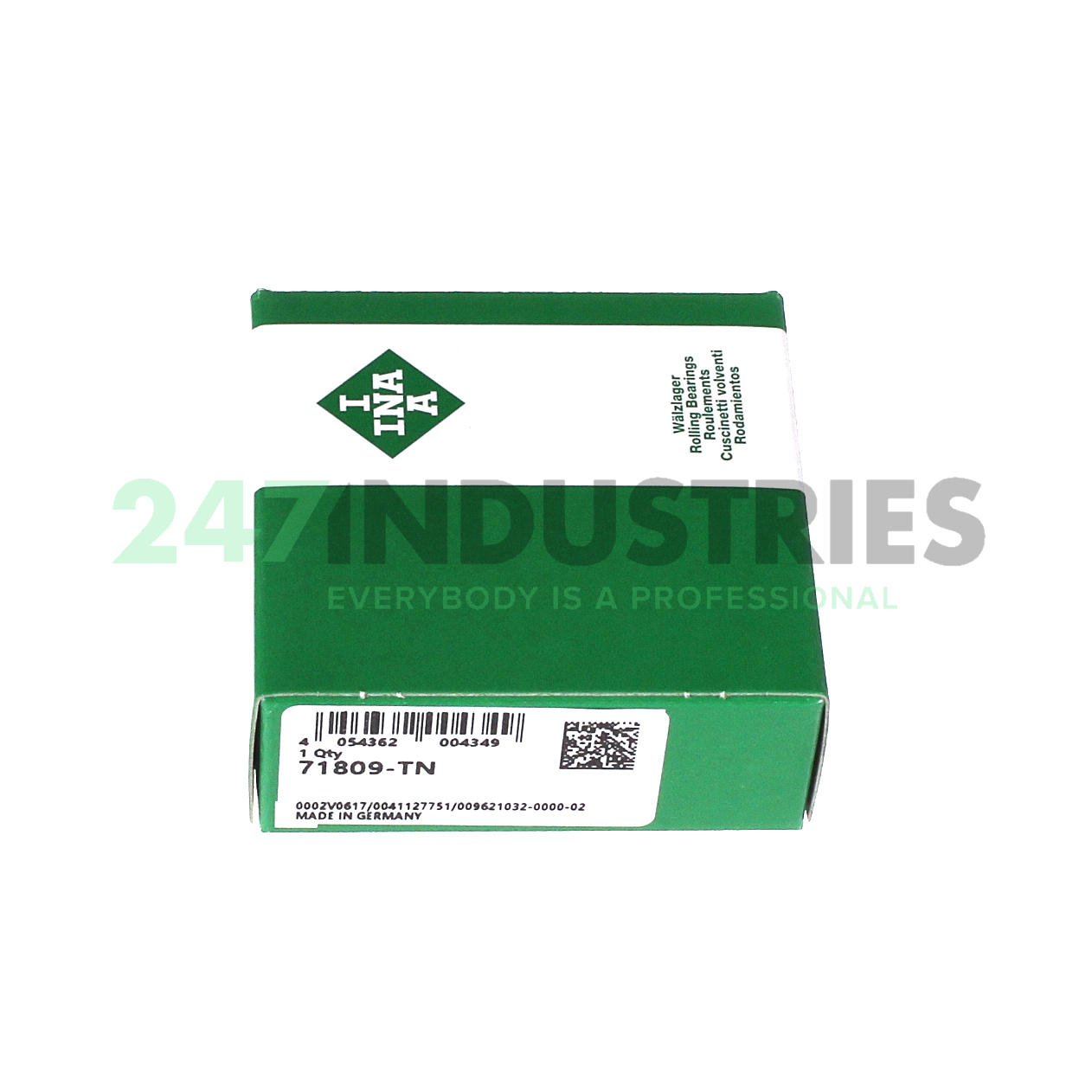

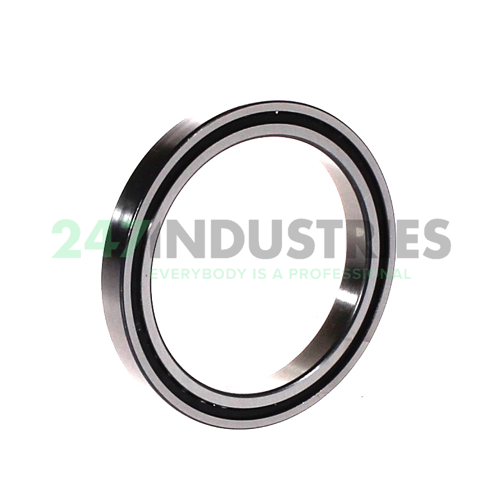

71809-TN INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 58
3. Width (B) MM 7
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.2835
6. Width (B) Inch 0.2756
7. Width (b) mm 7

Suffix description

1. TN Polyamide Cage

Technical details

1. Availability 17 pcs
2. Brand INA
3. Item number 71809-TN INA
4. Also known as 0096210320000

5. EAN 4054362004349
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.041

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6500
2. Radial Dynamic Load Rating Cr (N) 6600
3. Basic static load rating, radial (C 0r) "6500.0000"
4. Limiting speed (n G) 14500
5. Reference speed (n ϑr) 6300
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Angular contact ball bearing 718..-TVH, single row
