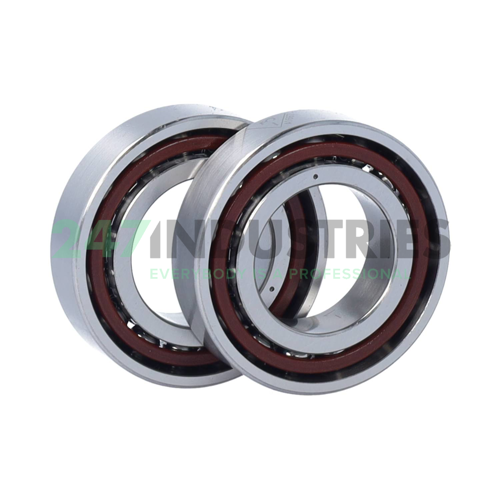

71904ACD/P4ADGB SKF

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 37
3. Width (B) MM 18
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.4567
6. Width (B) Inch 0.7087

Suffix description

1. ACD 25° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DGB Two Single Row Angular Contact Ball Bearings For Universal Pairing, I.E. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement, Moderate Preload

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 71904ACD/P4ADGB SKF
4. Also known as B71904-E-T-P4S-DUM
   S61904E TA ABEC7 DUM

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.07

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DM - 2 Univ Bearings Medium Pre
7. Lubrication Standard Lubrication
