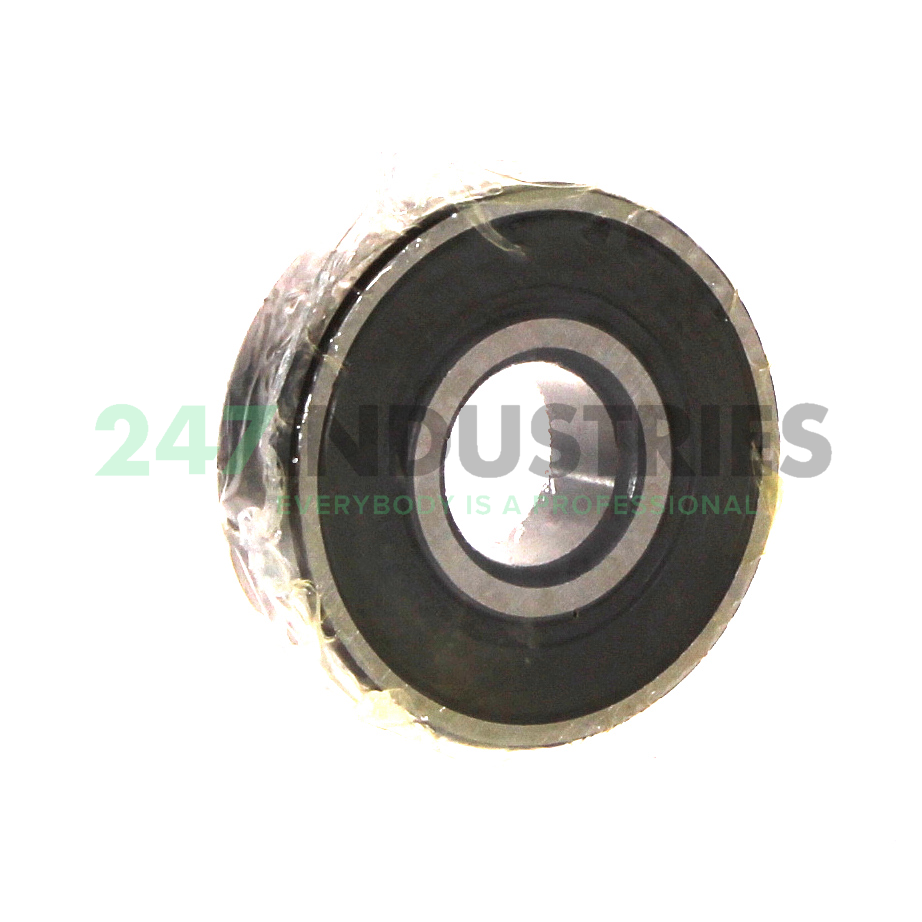

7302-B-2RS-TVP FAG

Single row angular contact ball bearing

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number 7302-B-2RS-TVP FAG
Inside diameter 15mm
Outside diameter 42mm
Width 13mm
Product description

The 7302-B-2RS-TVP FAG is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 7302-B-2RS-TVP FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 42
  3. Width (B) MM 13
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 1.6535
  6. Width (B) Inch 0.5118

Suffix description

  1. B 40° Contact Angle
  2. 2RS Rubber Seals At Each Side Of The Bearing
  3. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number 7302-B-2RS-TVP FAG
  4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.09

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Cage Type P - Plastic Molded Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication
