749/742 KBF

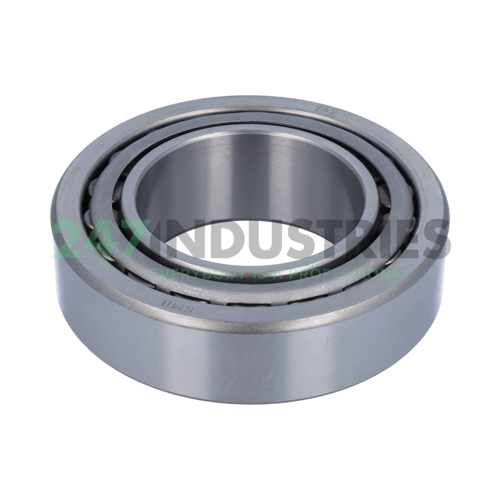

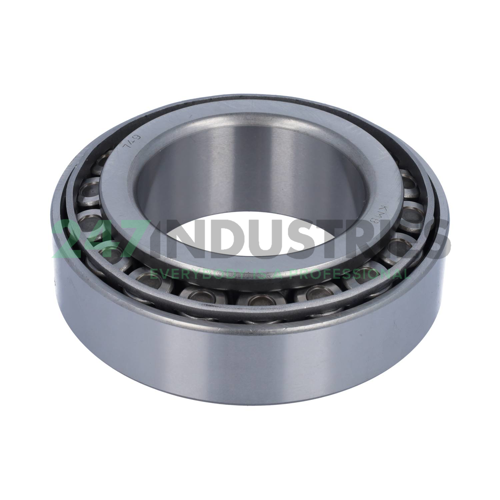

Single-row tapered roller bearing

Stock
24 pcs in stock and ready for shipment
Brand KBF
Article number 749/742 KBF
Inside diameter 85,03mm
Outside diameter 150,09mm
Width 44,45mm
Product description

The 749/742 KBF is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

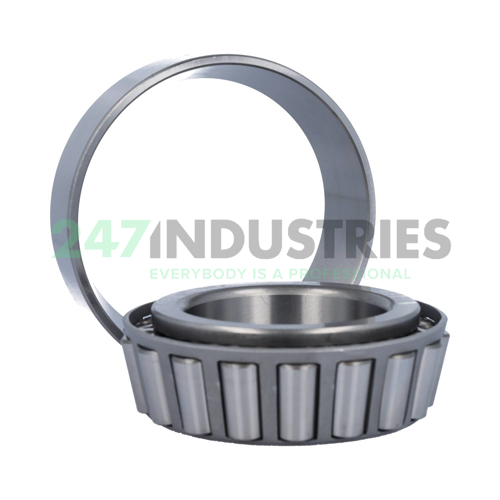

The 749/742 KBF is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Read more Show less
Help with this product

Similar to: 749/742 KBF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 85,03
  2. Outer (D) MM 150,09
  3. Width (B) MM 44,45
  4. Inner (d) Inch 3.3475
  5. Outer (D) Inch 5.909
  6. Width (B) Inch 1.75

Technical details

  1. Availability 24 pcs
  2. Brand KBF
  3. Item number 749/742 KBF
  4. Also known as 749-20024 / 742-20024
    749-99401
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 3.21

Product Properties

  1. Precision Standard Precision
