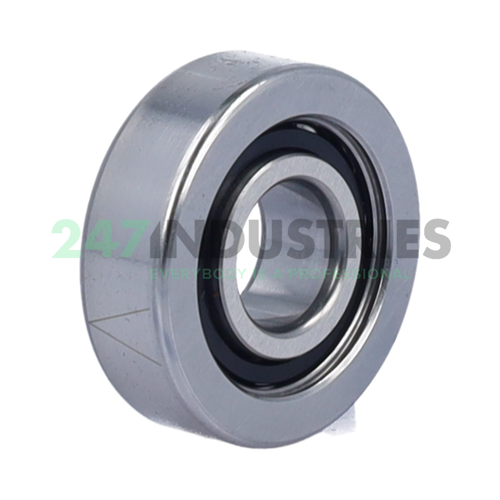

7602012-TVP FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 32
3. Width (B) MM 10
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 42 pcs
2. Brand FAG
3. Item number 7602012-TVP FAG
4. Also known as 0191191780000
   12TAC32DB
   BAS201CGA
   BDAB634216
   BSD1232DB
   J1232
   MM12BS32DUH

5. EAN 4026677497536
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 20700
2. Axial Dynamic Load Rating Ca (N) 12200
3. Limiting speed for grease lubrication (n G Grease) 14100
4. Thermally safe operating speed (n ϑ) 8000
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02
7. Medias description Axial angular contact ball bearing 7602..-TVP, single direction, no screw mounting
