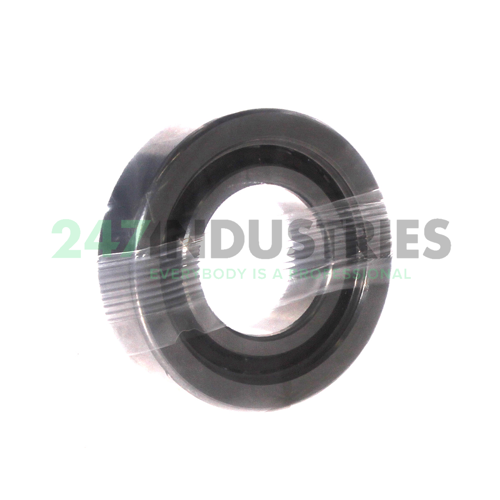

7602030-2RS-TVP FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 7602030-2RS-TVP FAG
4. Also known as 0386483420000

5. EAN 4026677830265
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.226

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 66000
2. Axial Dynamic Load Rating Ca (N) 27500
3. Limiting speed for grease lubrication (n G Grease) 5000
4. Thermally safe operating speed (n ϑ) 3800
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02
7. Medias description Axial angular contact ball bearings 7602..-2RS, single direction, with contact angle a = 60°, restricted tolerances, lip seals on both sides
