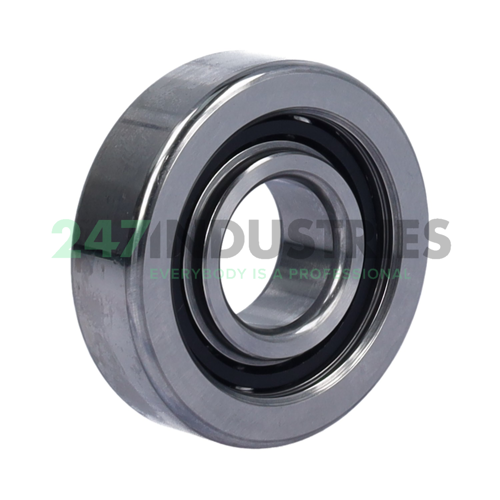

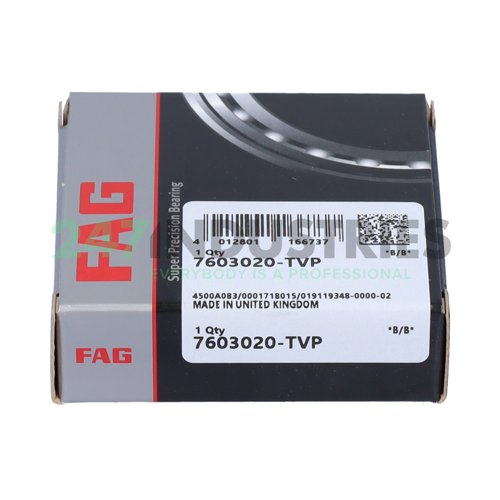

7603020-TVP FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 16 pcs
2. Brand FAG
3. Item number 7603020-TVP FAG
4. Also known as 0191193480000
   BSA305

5. EAN 4012801166737
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.151

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 53000
2. Axial Dynamic Load Rating Ca (N) 25500
3. Limiting speed for grease lubrication (n G Grease) 8200
4. Thermally safe operating speed (n ϑ) 4500
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02
7. Medias description Axial angular contact ball bearings 7603, single direction, with contact angle a = 60°, restricted tolerances
