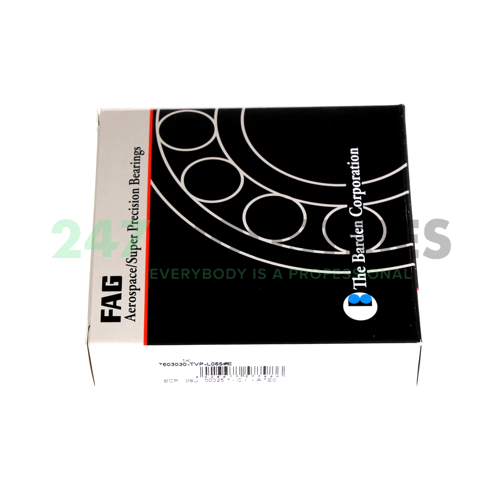

7603030-TVP-L055 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
2. L055 Bearing Greased With High Performance Grease Arcanol MULTITOP

Technical details

1. Availability 3 pcs
2. Brand FAG
3. Item number 7603030-TVP-L055 FAG
4. Also known as 0387269120000

5. EAN 4026677577986
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.409

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 89000
2. Axial Dynamic Load Rating Ca (N) 36500
3. Limiting speed for grease lubrication (n G Grease) 5700
4. Thermally safe operating speed (n ϑ) 3200
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02
7. Medias description Axial angular contact ball bearings 7603, single direction, with contact angle a = 60°, restricted tolerances
