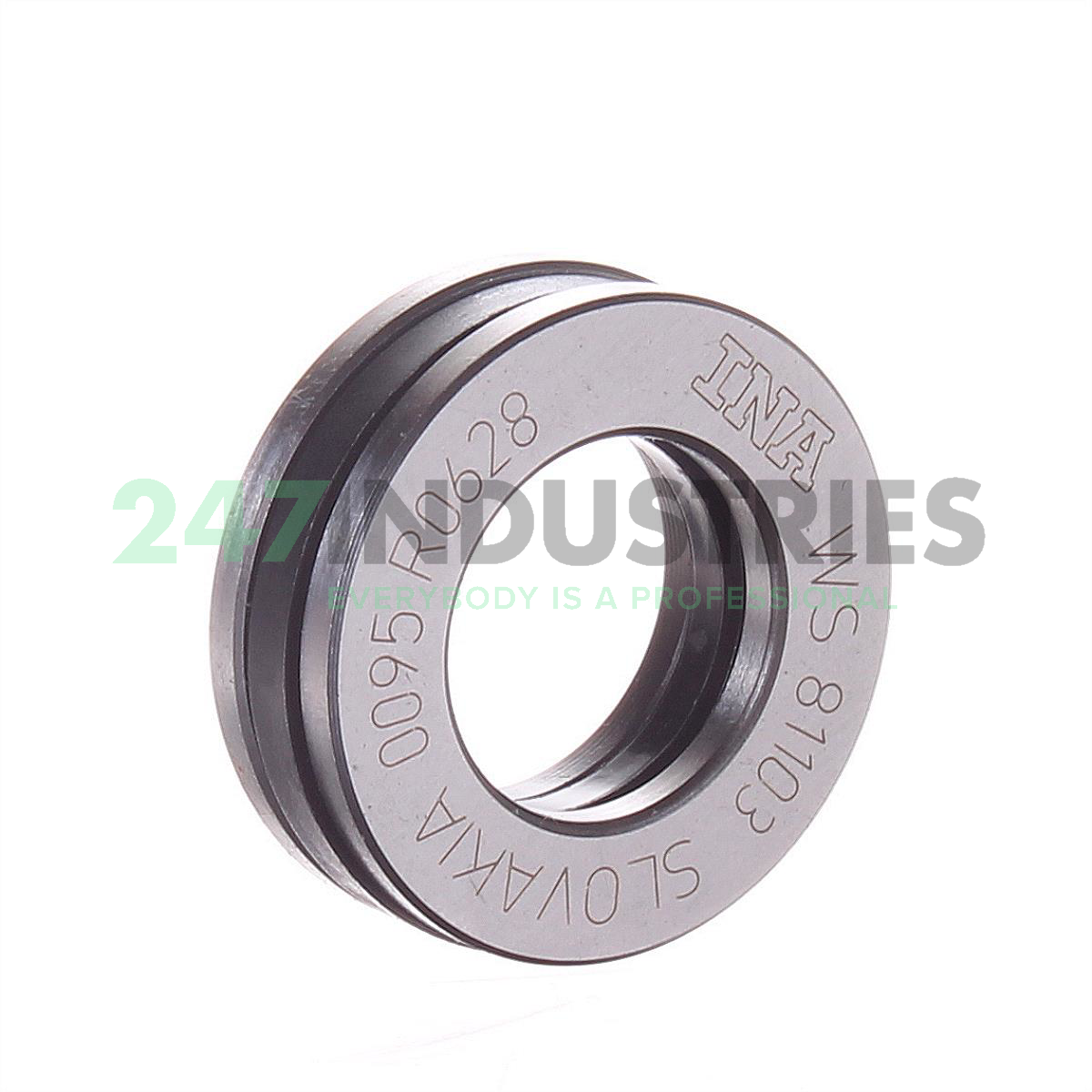

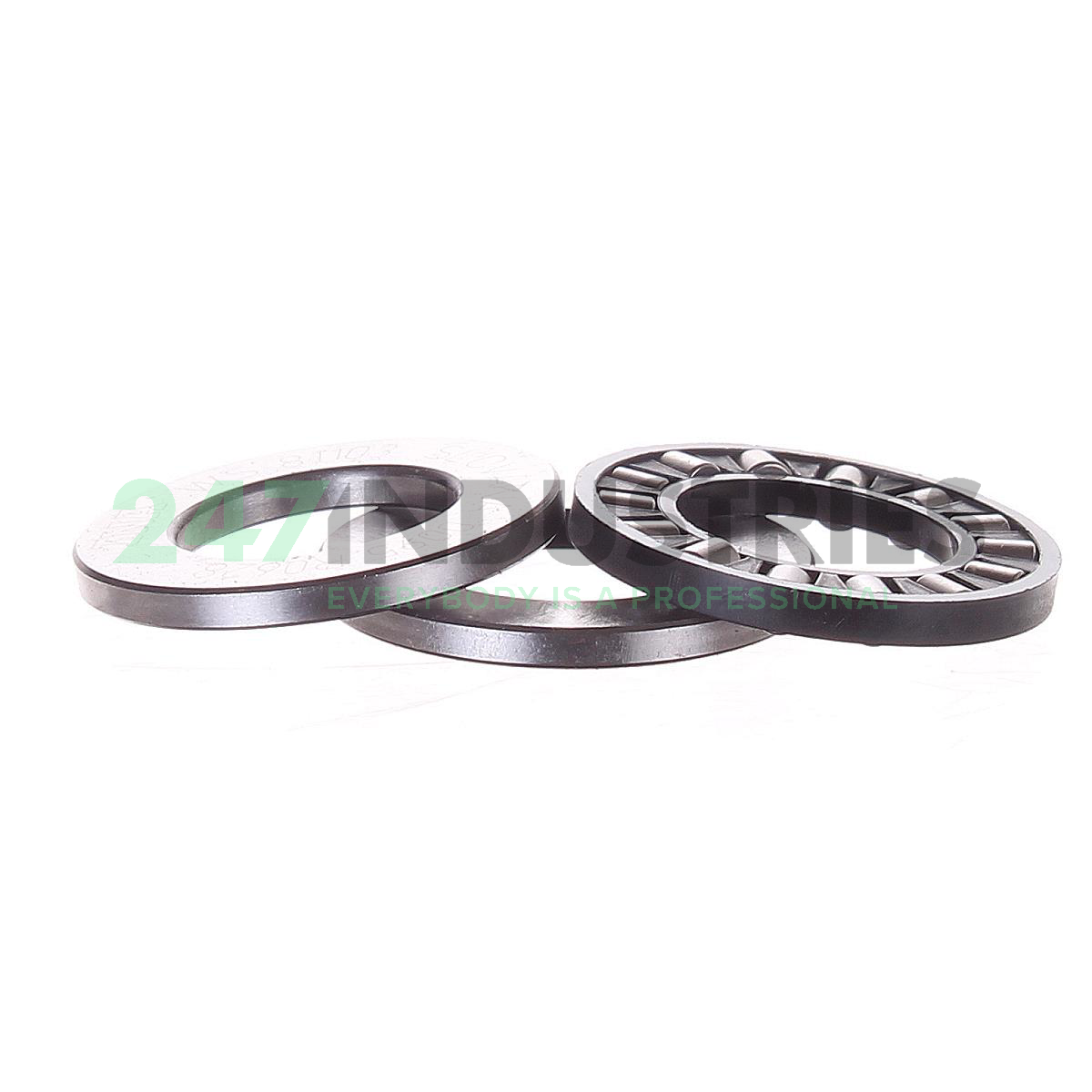

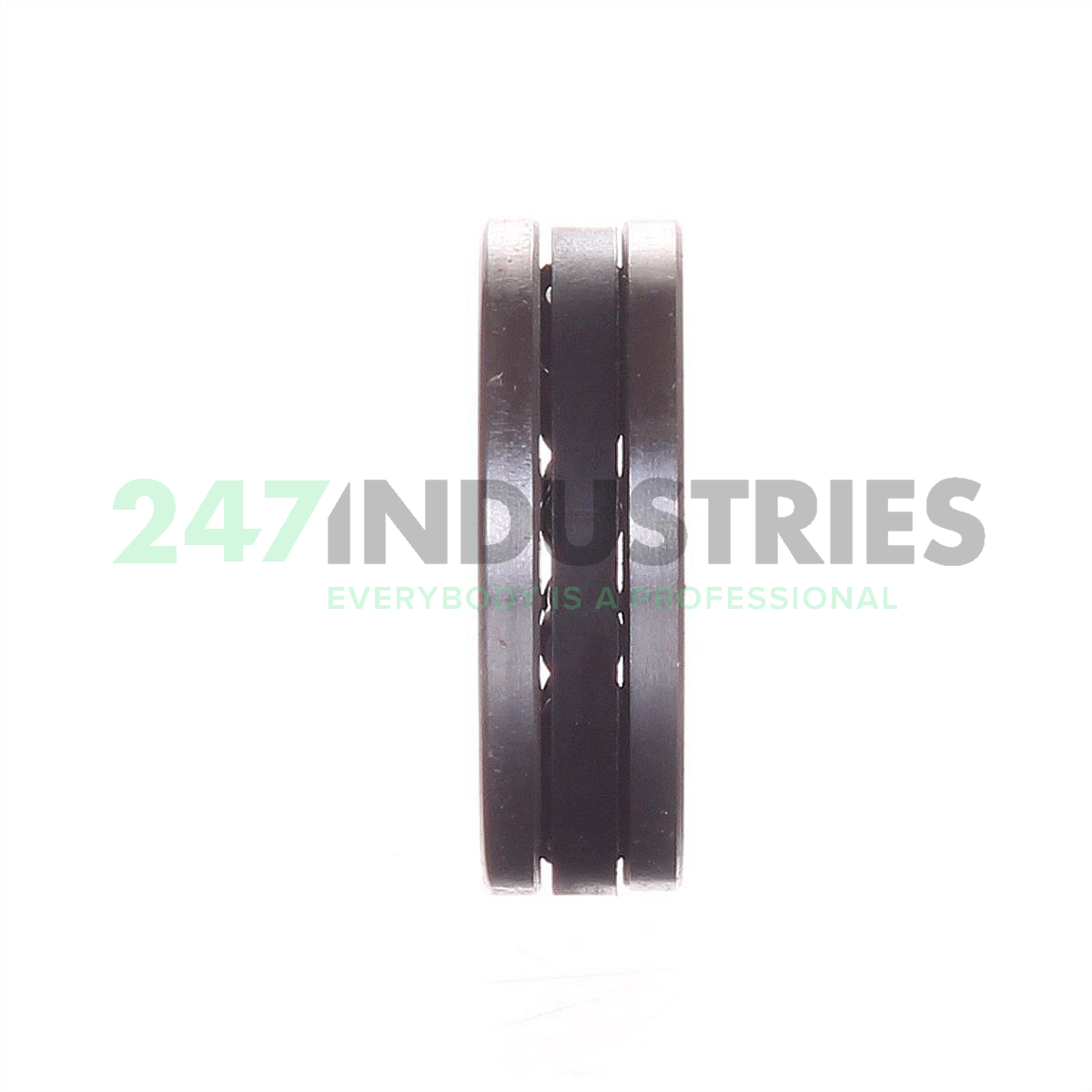

81103-TV INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 30
3. Width (B) MM 9
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.3543
7. Height (T) mm 9

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 70 pcs
2. Brand INA
3. Item number 81103-TV INA
4. Also known as 0002402570000

5. EAN 4012802440157
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.0242

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 33500
2. Axial Dynamic Load Rating Ca (N) 15800
3. Limiting speed (n G) 12300
4. Reference speed (n ϑr) 5400
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01
7. Medias description Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
