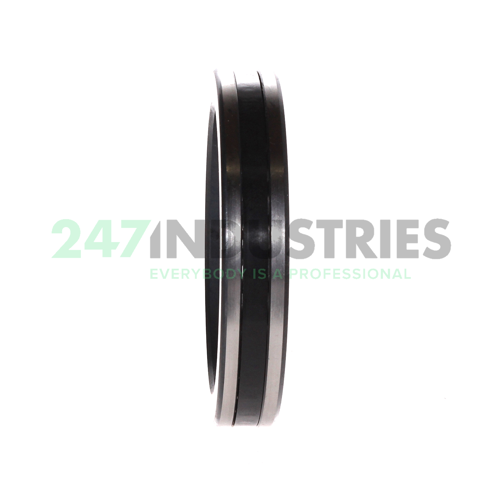

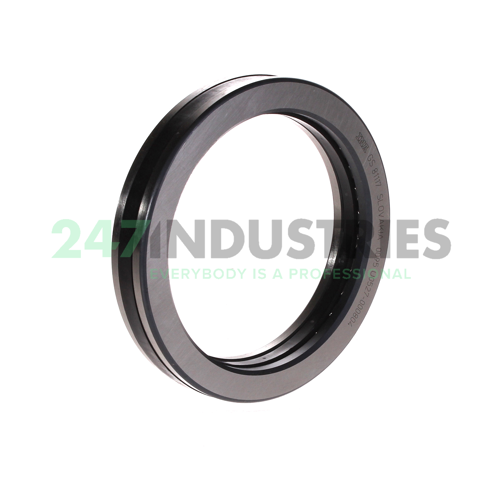

81117-TV INA

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 110
3. Width (B) MM 19
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.748
7. Height (T) mm 19

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 17 pcs
2. Brand INA
3. Item number 81117-TV INA
4. Also known as 0005363000000

5. EAN 4012802554076
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.42

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 385000
2. Axial Dynamic Load Rating Ca (N) 112000
3. Limiting speed (n G) 2950
4. Reference speed (n ϑr) 1070
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01

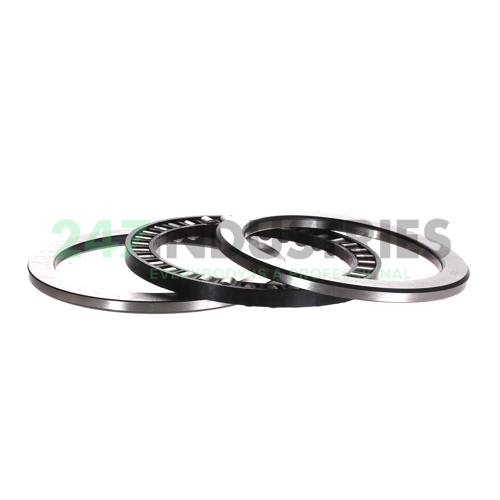

7. Medias description Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
