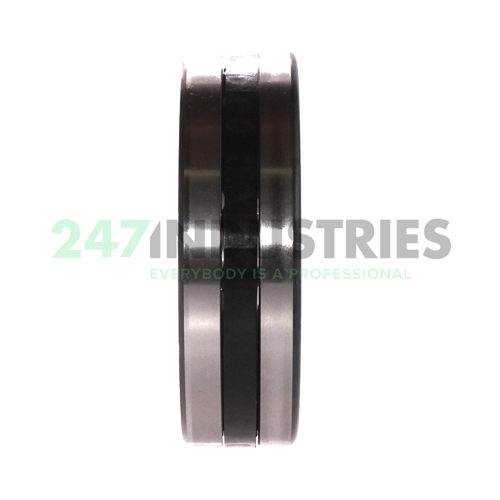

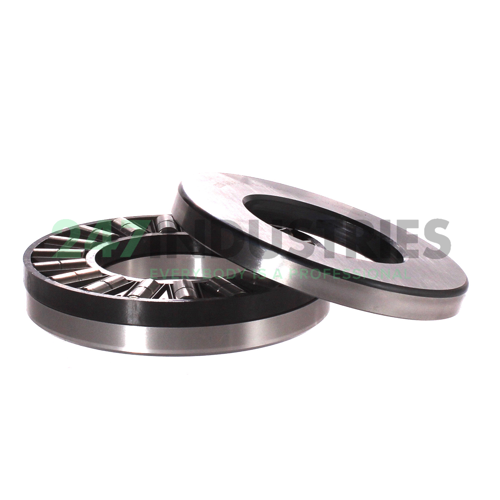

89311-TV INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 105
3. Width (B) MM 30
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.1339
6. Width (B) Inch 1.1811
7. Height (T) mm 30

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 13 pcs
2. Brand INA
3. Item number 89311-TV INA
4. Also known as 0003617630000

5. EAN 4012802692693
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 1.201

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 600000
2. Axial Dynamic Load Rating Ca (N) 184000
3. Limiting speed (n G) 3600
4. Reference speed (n ϑr) 1490
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01
7. Medias description Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
