AH313G FAG

€ 91,53 ex VAT
€ 110,76 incl. VAT
€ 110,76 incl. VAT
€ 91,53 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

AH313G FAG

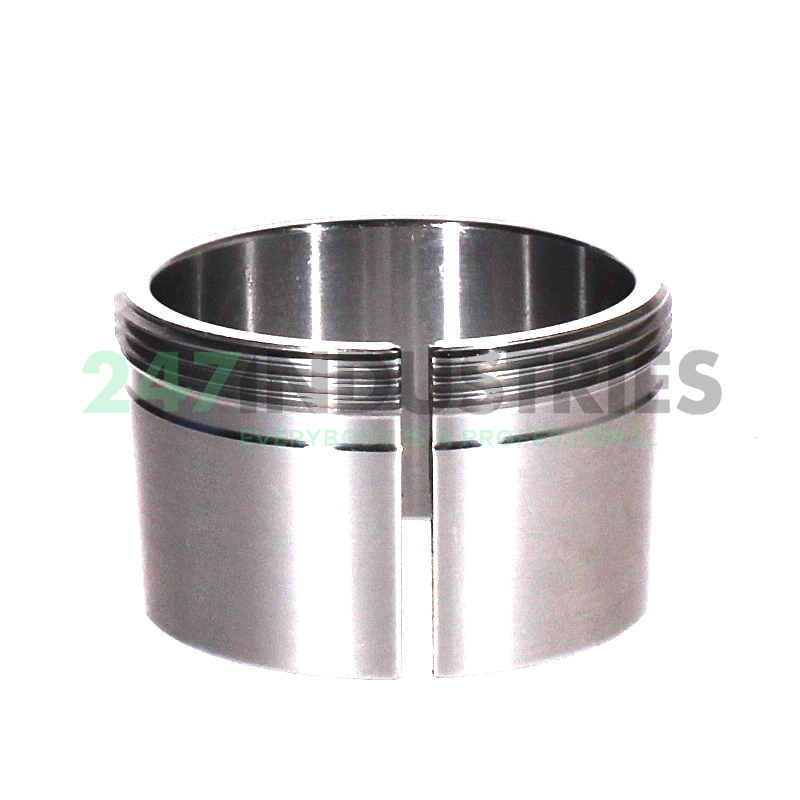

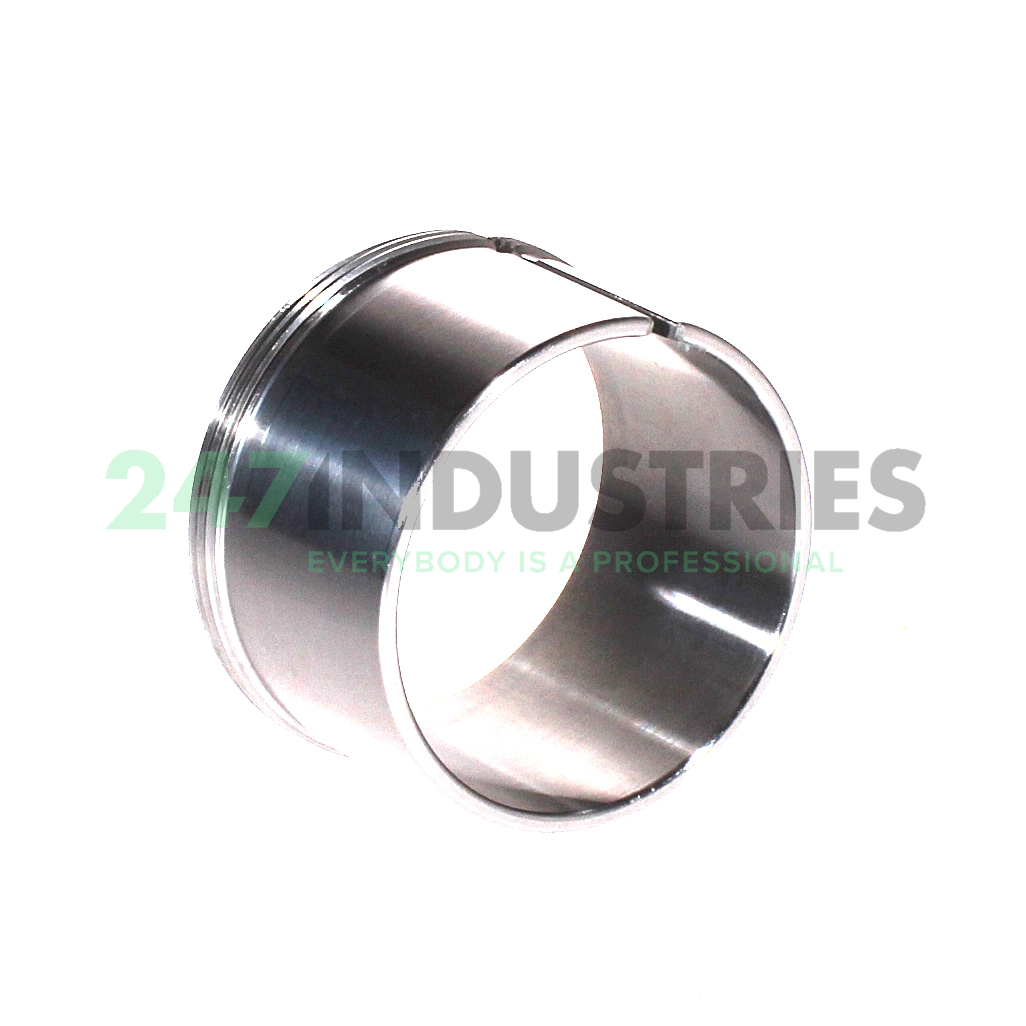

Withdrawal sleeves AH(X)3, main dimensions to DIN 5416, taper 1:12

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number AH313G FAG
Inside diameter 60mm
Outside diameter 70mm
Width 45mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: AH313G FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60
  2. Outer (D) MM 70
  3. Width (B) MM 45
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 2.7559
  6. Width (B) Inch 1.7717
  7. Sleeve length (B 1) mm 42

Suffix description

  1. G Hydraulic Withdrawal Sleeve With Modified Thread G

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number AH313G FAG
  4. Also known as 0392385040000
  5. EAN 4012802166880
  6. Category Adapter / Withdrawal Sleeve

Weight and Dimensions

  1. Weight (kg) 0.23

Data from Schaeffler (medias)

  1. Thread (G) M70x2
  2. ECLASS number 23-05-92-02
  3. ECLASS2 number 23-05-92-02
  4. Medias description Withdrawal sleeve AH, accessory rolling bearing, mechanical, finished part
