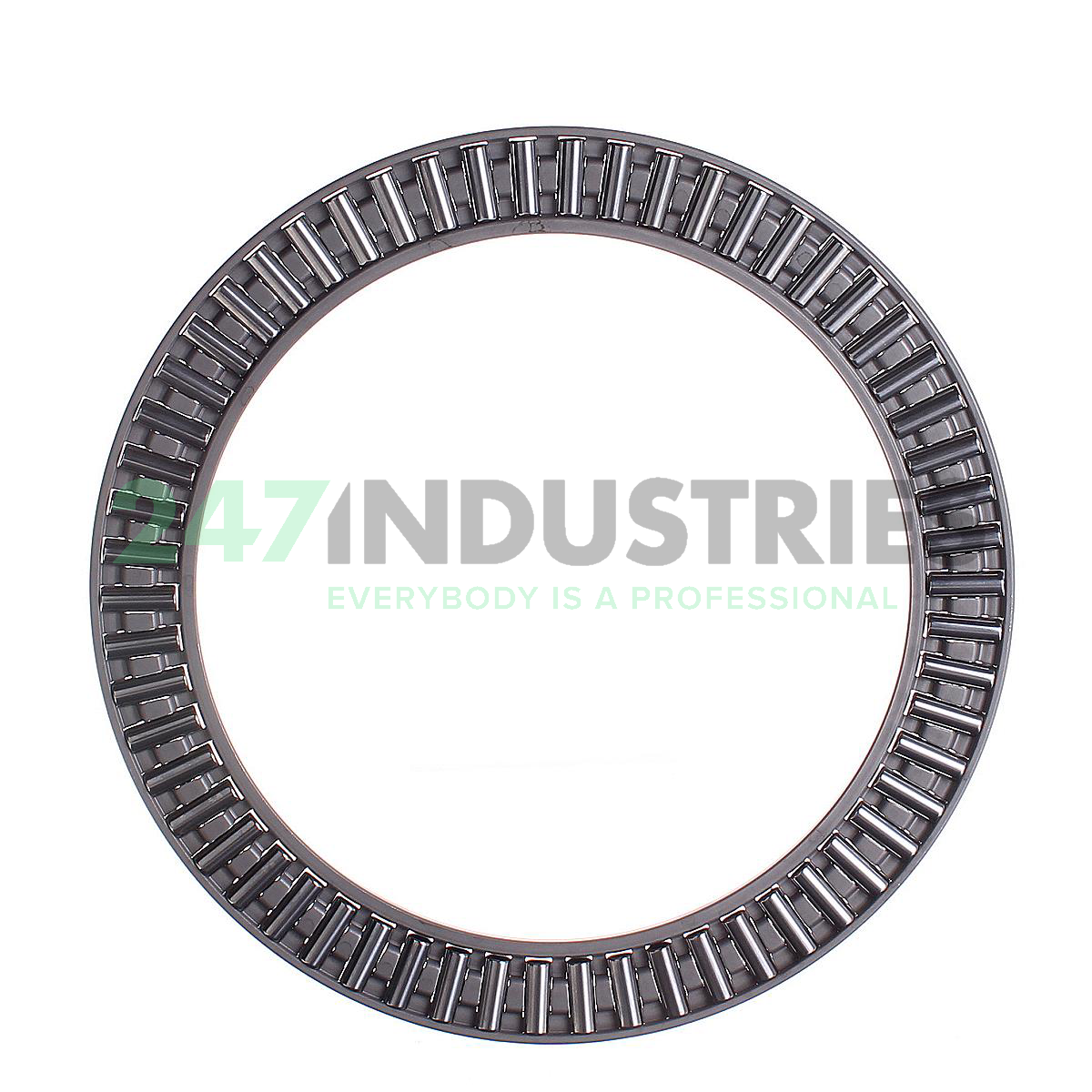

AXK130170-A/0-10 INA

All dimensions

1. Inner (d) MM 130
2. Outer (D) MM 170
3. Width (B) MM 5
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 6.6929
6. Width (B) Inch 0.1969
7. Outside diameter (D c) mm 170
8. Rolling element diameter (D W) mm 5
9. Raceway dimension (E a) mm 167
10. Raceway dimension (E b) mm 136

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 14 pcs
2. Brand INA
3. Item number AXK130170-A/0-10 INA
4. Also known as 0000358669065

5. EAN 4012802369038
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.21

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 840000
2. Axial Dynamic Load Rating Ca (N) 134000
3. Limiting speed (n G) 1920
4. Reference speed (n ϑr) 760
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias description Axial needle roller and cage assemblies, single direction, to DIN 5405-2

Downloads and links

1. Link to manufacturer Link to manufacturer
