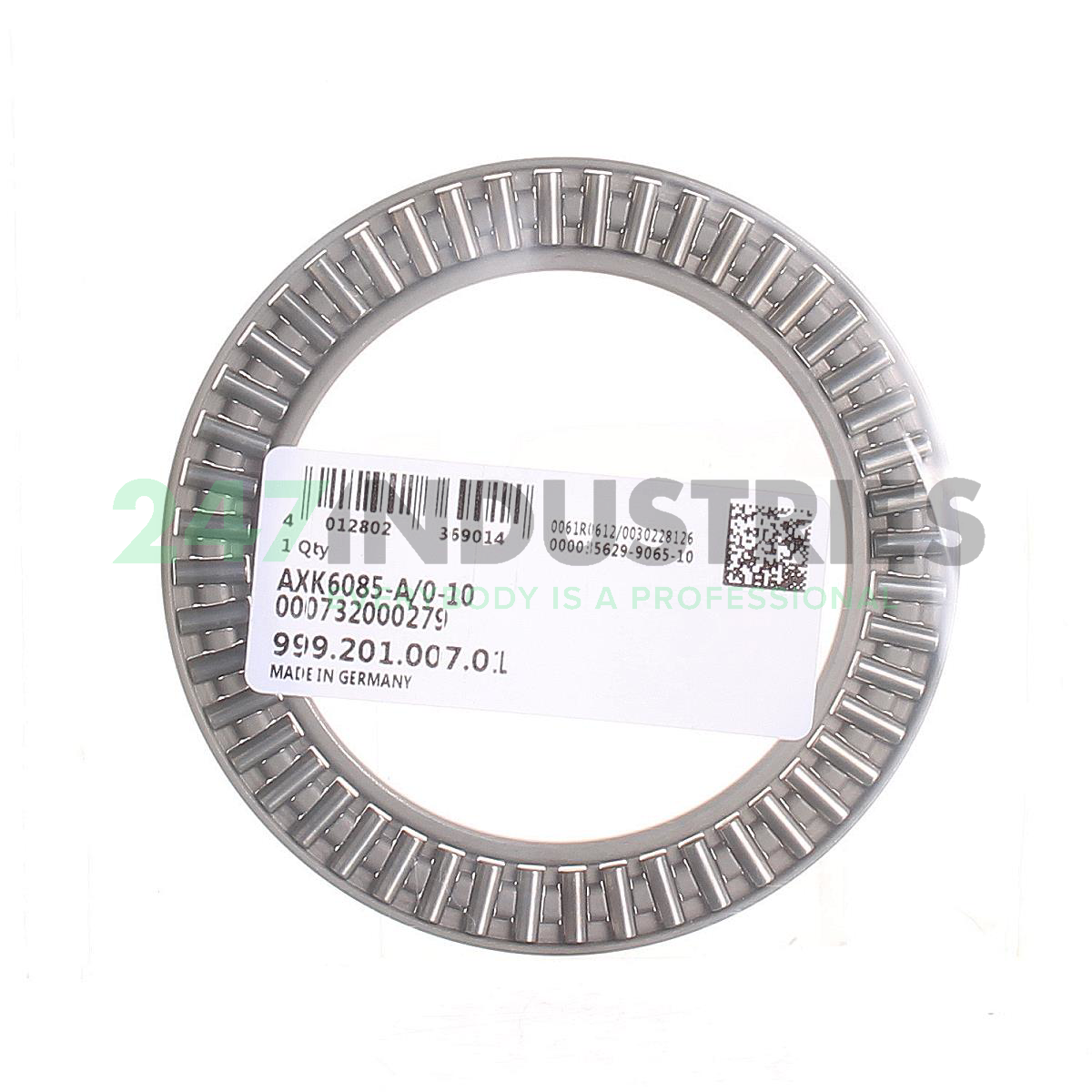

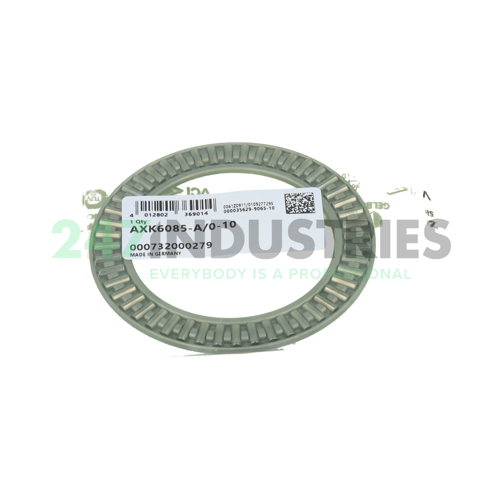

AXK6085-A/0-10 INA

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 85
3. Width (B) MM 3
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.1181
7. Outside diameter (D c) mm 85
8. Rolling element diameter (D W) mm 3
9. Raceway dimension (E a) mm 83
10. Raceway dimension (E b) mm 65

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 488 pcs
2. Brand INA
3. Item number AXK6085-A/0-10 INA
4. Also known as 0000356299065

5. EAN 4012802369014
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.0361

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 234000
2. Axial Dynamic Load Rating Ca (N) 45000
3. Limiting speed (n G) 3950
4. Reference speed (n ϑr) 1590
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias description Axial needle roller and cage assemblies, single direction, to DIN 5405-2

Downloads and links

1. Link to manufacturer Link to manufacturer
