AXS4558 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 58
3. Width (B) MM 6
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.2835
6. Width (B) Inch 0.2362
7. Height (H) mm 6
8. Outer diameter (D) mm 58

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number AXS4558 INA
4. Also known as 0705445060000

5. EAN 4054362029281
6. Category Specials

Weight and Dimensions

1. Weight (kg) 0.035

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11200
2. Radial Dynamic Load Rating Cr (N) 7600
3. Axial Static Load Rating C0a (N) 56000
4. Contact angle (α) 45
5. Axial Dynamic Load Rating Ca (N) 18200
6. Basic dynamic load rating, axial (C 0a) 56000
7. Static load rating, radial (C 0r) 11200
8. ECLASS number 23-05-11-90
9. ECLASS2 number 23-05-11-90

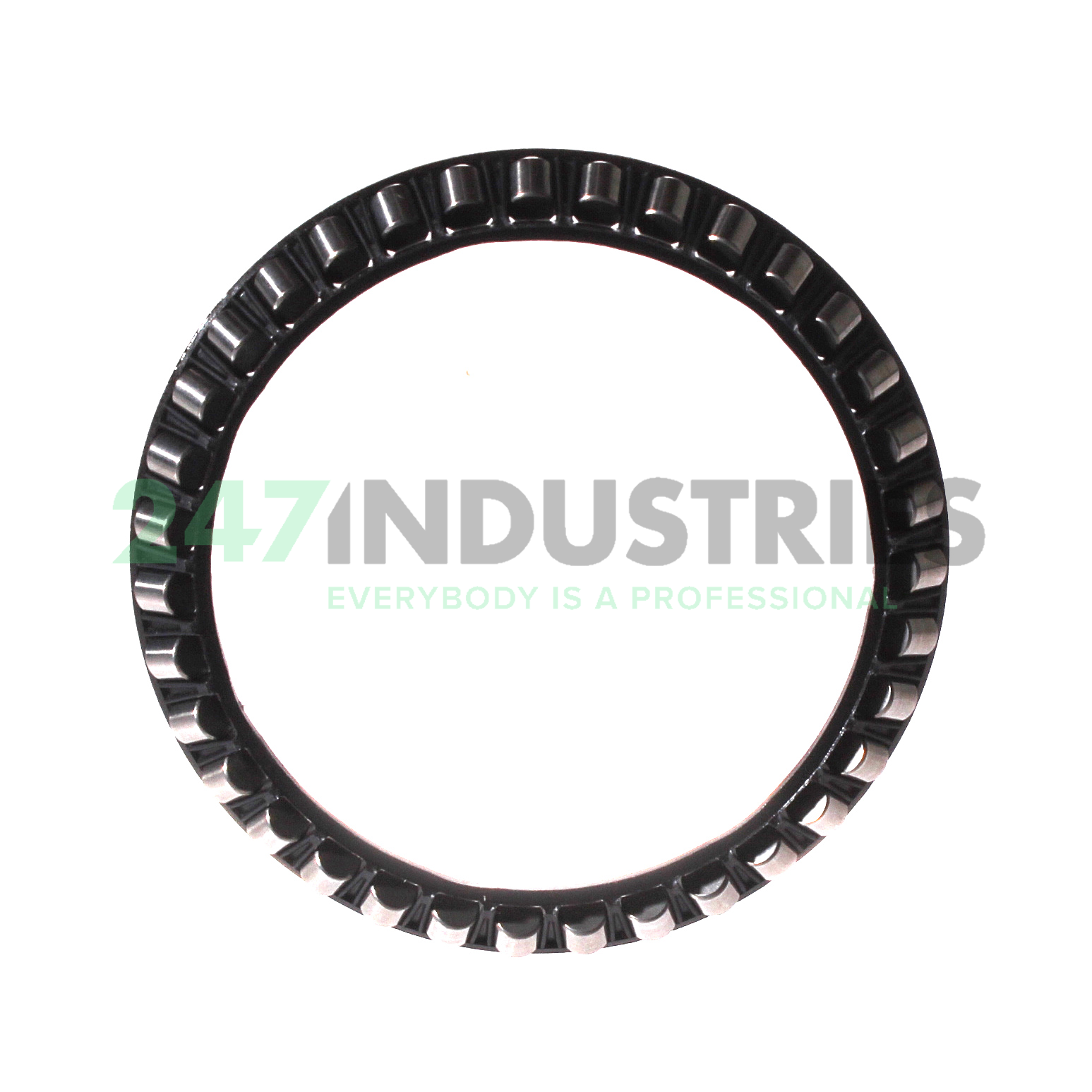

10. Medias description Axial angular contact roller bearing
