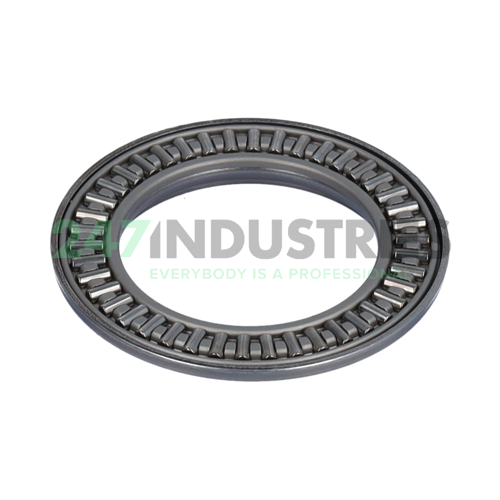

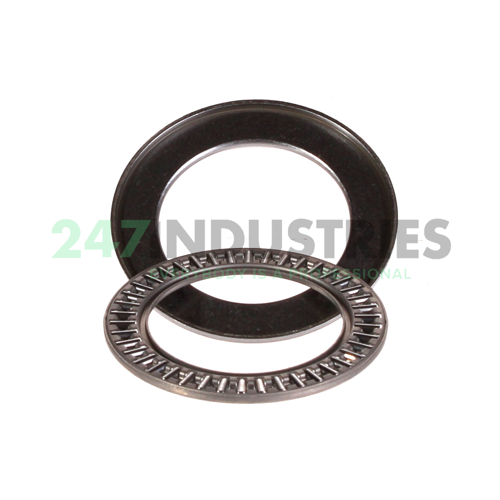

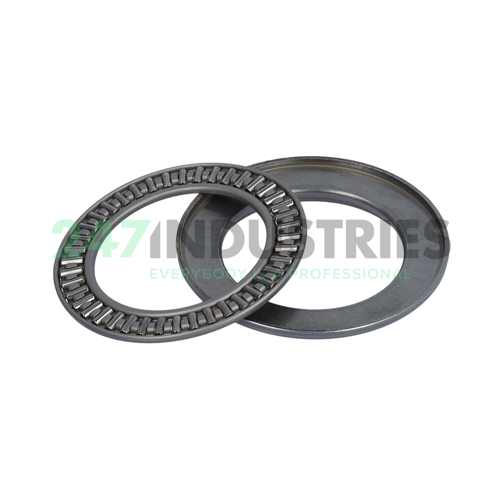

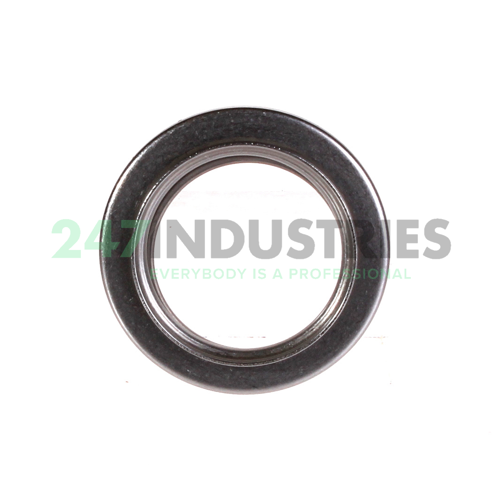

AXW35 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 55
3. Width (B) MM 3,2
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.126
7. Outside diameter bearing washer (D) mm 55
8. Height bearing (B) mm 3,2

Technical details

1. Availability 66 pcs
2. Brand INA
3. Item number AXW35 INA
4. Also known as 0001621160000

5. EAN 4012802432473
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.027

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C) 17900
2. Axial Static Load Rating C0a (N) 81000
3. Axial Dynamic Load Rating Ca (N) 17900
4. Limiting speed (n G) 6600
5. Reference speed (n ϑr) 3250
6. ECLASS number 23-05-11-02
7. ECLASS2 number 23-05-11-02
8. Medias description Axial needle roller bearings, single direction, AXK with axial bearing washer
